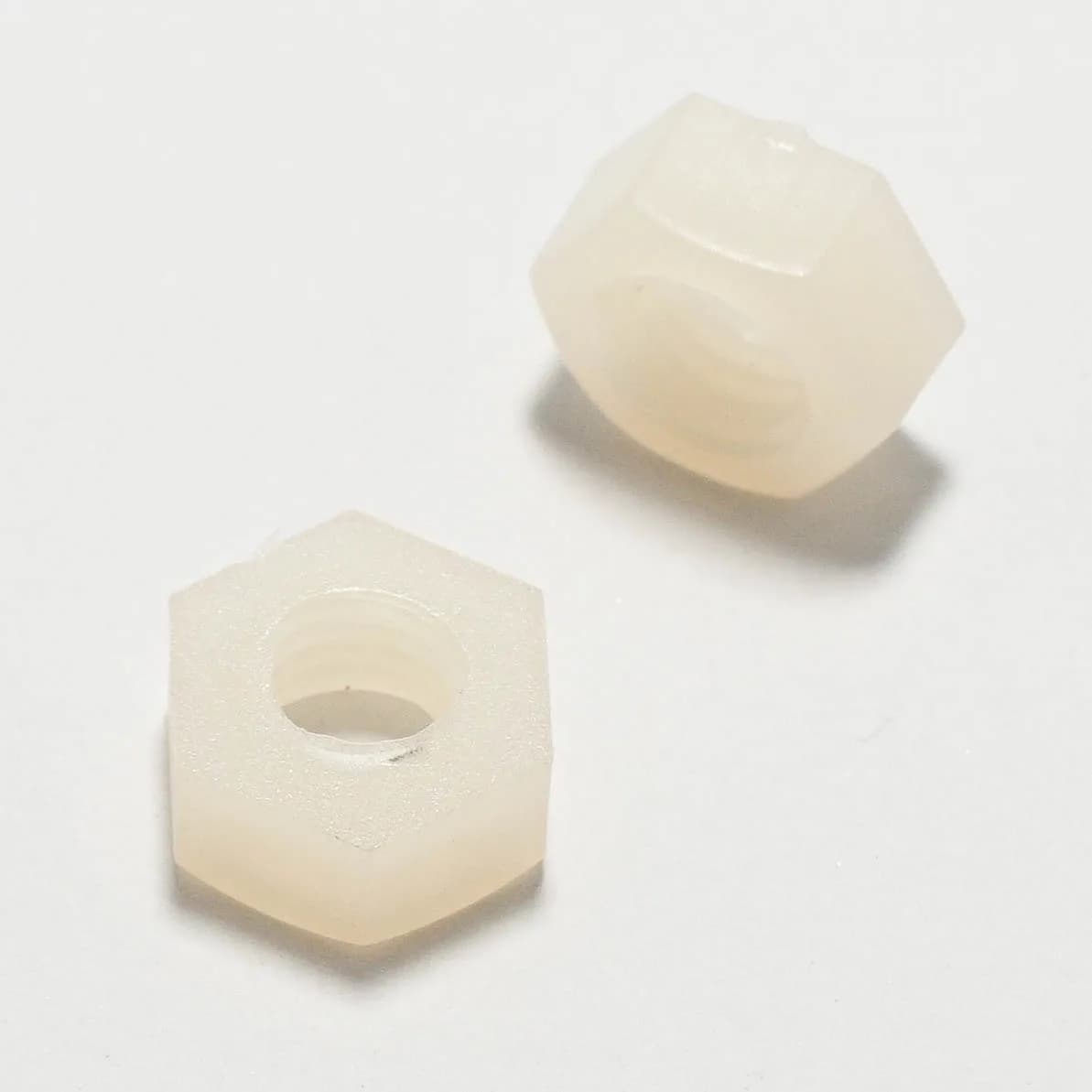

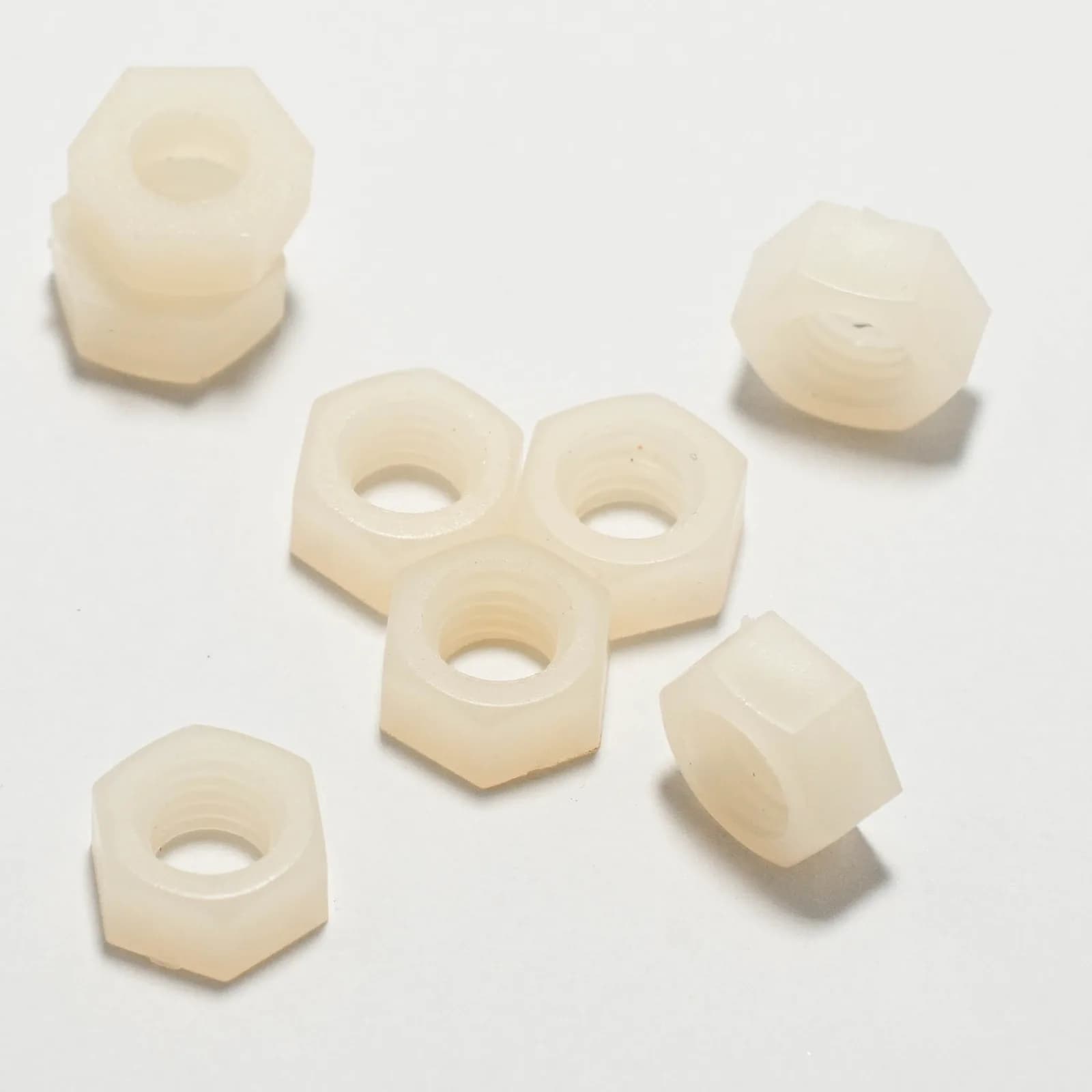

EnlargeRepresentative product photography. The supplied configuration is agreed with your order.
Nylon Hex Nuts
Source nylon hex nuts through Yulong in Shenzhen, China. Nylon hex nuts require both a thread specification and a polymer grade. Nut height and across-flats dimensions should come from the selected product drawing.
- Listed material
- Nylon
Nylon Hex Nuts quotation details
- Thread and pitch
- nylon grade
- nut height
- across flats
- colour
- service conditions
- quantity
Configuration, minimum quantity and lead time are reviewed with your inquiry.
Nylon Hex Nuts: sizes, material & specifications
Use these discrete specifications to identify your part. Length choices apply only to the thread size on the same row. Other sizes, drawing tolerances and order availability can be reviewed with your inquiry.
| Thread size | Pitch | Material | Standard / drawing reference | Drawing dimensions (mm) |
|---|---|---|---|---|
| M2 | Confirm on drawing | Nylon 6/6 | Drawing-specific | Across flats F=3.9; Height H=1.2 mm |
| M2.5 | Confirm on drawing | Nylon 6/6 | Drawing-specific | Across flats F=4.9; Height H=1.8 mm |
| M3 | Confirm on drawing | Nylon 6/6 | Drawing-specific | Across flats F=5.4; Height H=2.2 mm |
| M3.5 | Confirm on drawing | Nylon 6/6 | Drawing-specific | Across flats F=6.9; Height H=2.7 mm |
| M4 | Confirm on drawing | Nylon 6/6 | Drawing-specific | Across flats F=6.9; Height H=3 mm |
| M5 | Confirm on drawing | Nylon 6/6 | Drawing-specific | Across flats F=7.9; Height H=4.3 mm |
| M6 | Confirm on drawing | Nylon 6/6 | Drawing-specific | Across flats F=10; Height H=5.4 mm |
| M8 | Confirm on drawing | Nylon 6/6 | Drawing-specific | Across flats F=12.9; Height H=6.4 mm |
| M10 | Confirm on drawing | Nylon 6/6 | Drawing-specific | Across flats F=14.8; Height H=9.8 mm |
| M12 | Confirm on drawing | Nylon 6/6 | Drawing-specific | Across flats F=17.74; Height H=10.54 mm |
Material and drawing selection
Material is Nylon 6/6 (PA66). The ten listed thread sizes are discrete references. Pitch and polymer performance must be confirmed; no international product standard is claimed.
Drawing & sample review
Share a drawing, photograph or existing part reference. Any deviations from the listed product form can be reviewed before quotation.
Quality & packing
Inspection, documentation and packing requirements are agreed for each order.
Order arrangementsRelated product types
Discuss your requirements
A drawing, sample reference or parts list is enough to start the conversation. Dimensions and commercial terms are confirmed with your quotation.
