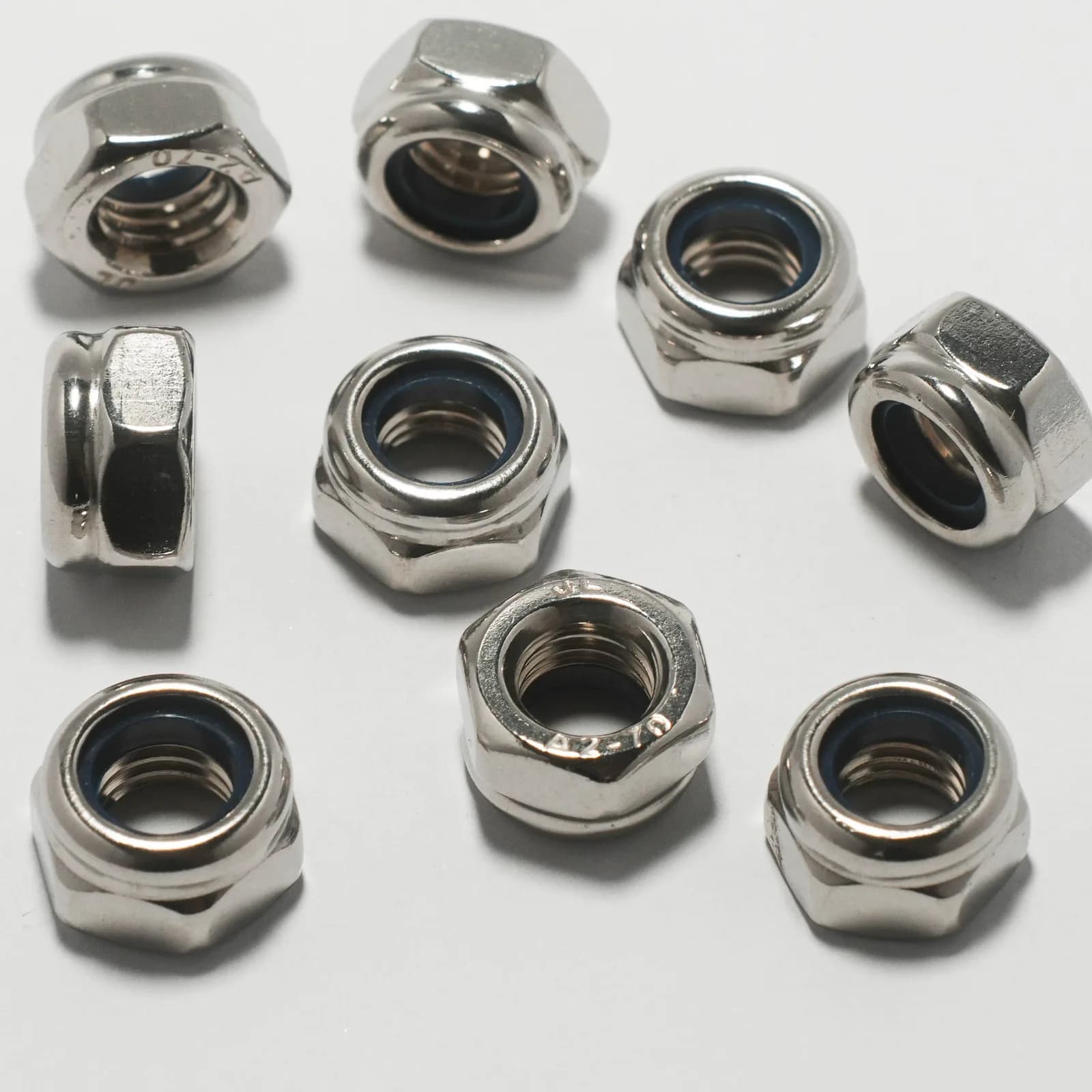

EnlargeRepresentative product photography. The supplied configuration is agreed with your order.
304 Stainless Steel Lock Nuts
Source 304 stainless steel lock nuts through Yulong in Shenzhen, China. Lock nuts must be identified by their locking construction. Nylon-insert and all-metal types need separate material and temperature checks.
- Listed material
- 304 Stainless steel
304 Stainless Steel Lock Nuts quotation details
- Thread and pitch
- nylon-insert or all-metal locking type
- nut height and across flats
- temperature requirement
- material and grade
Configuration, minimum quantity and lead time are reviewed with your inquiry.
304 Stainless Steel Lock Nuts: sizes, material & specifications
Use these discrete specifications to identify your part. Length choices apply only to the thread size on the same row. Other sizes, drawing tolerances and order availability can be reviewed with your inquiry.
| Thread size | Pitch | Material | Standard / drawing reference | Drawing dimensions (mm) |
|---|---|---|---|---|
| M4 | Confirm on drawing | A2 (AISI 304) | DIN 985 | SW=7 mm; h=5 mm |
| M5 | Confirm on drawing | A2 (AISI 304) | DIN 985 | SW=8 mm; h=5 mm |
| M6 | Confirm on drawing | A2 (AISI 304) | DIN 985 | SW=10 mm; h=6 mm |
| M8 | Confirm on drawing | A2 (AISI 304) | DIN 985 | SW=13 mm; h=8 mm |
| M10 | Confirm on drawing | A2 (AISI 304) | DIN 985 | SW=17 mm; h=10 mm |
| M12 | Confirm on drawing | A2 (AISI 304) | DIN 985 | SW=19 mm; h=12 mm |
| M14 | Confirm on drawing | A2 (AISI 304) | DIN 985 | SW=22 mm; h=14 mm |
| M16 | Confirm on drawing | A2 (AISI 304) | DIN 985 | SW=24 mm; h=16 mm |
| M18 | Confirm on drawing | A2 (AISI 304) | DIN 985 | SW=27 mm; h=18.5 mm |
| M20 | Confirm on drawing | A2 (AISI 304) | DIN 985 | SW=30 mm; h=20 mm |
| M22 | Confirm on drawing | A2 (AISI 304) | DIN 985 | SW=32 mm; h=22 mm |
| M24 | Confirm on drawing | A2 (AISI 304) | DIN 985 | SW=36 mm; h=24 mm |
Material and drawing selection
These DIN 985 references use nylon inserts in an A2 (AISI 304) nut body. They do not describe all-metal lock nuts. Confirm insert suitability for the service temperature.
Drawing & sample review
Share a drawing, photograph or existing part reference. Any deviations from the listed product form can be reviewed before quotation.
Quality & packing
Inspection, documentation and packing requirements are agreed for each order.
Order arrangementsRelated product types
Discuss your requirements
A drawing, sample reference or parts list is enough to start the conversation. Dimensions and commercial terms are confirmed with your quotation.
