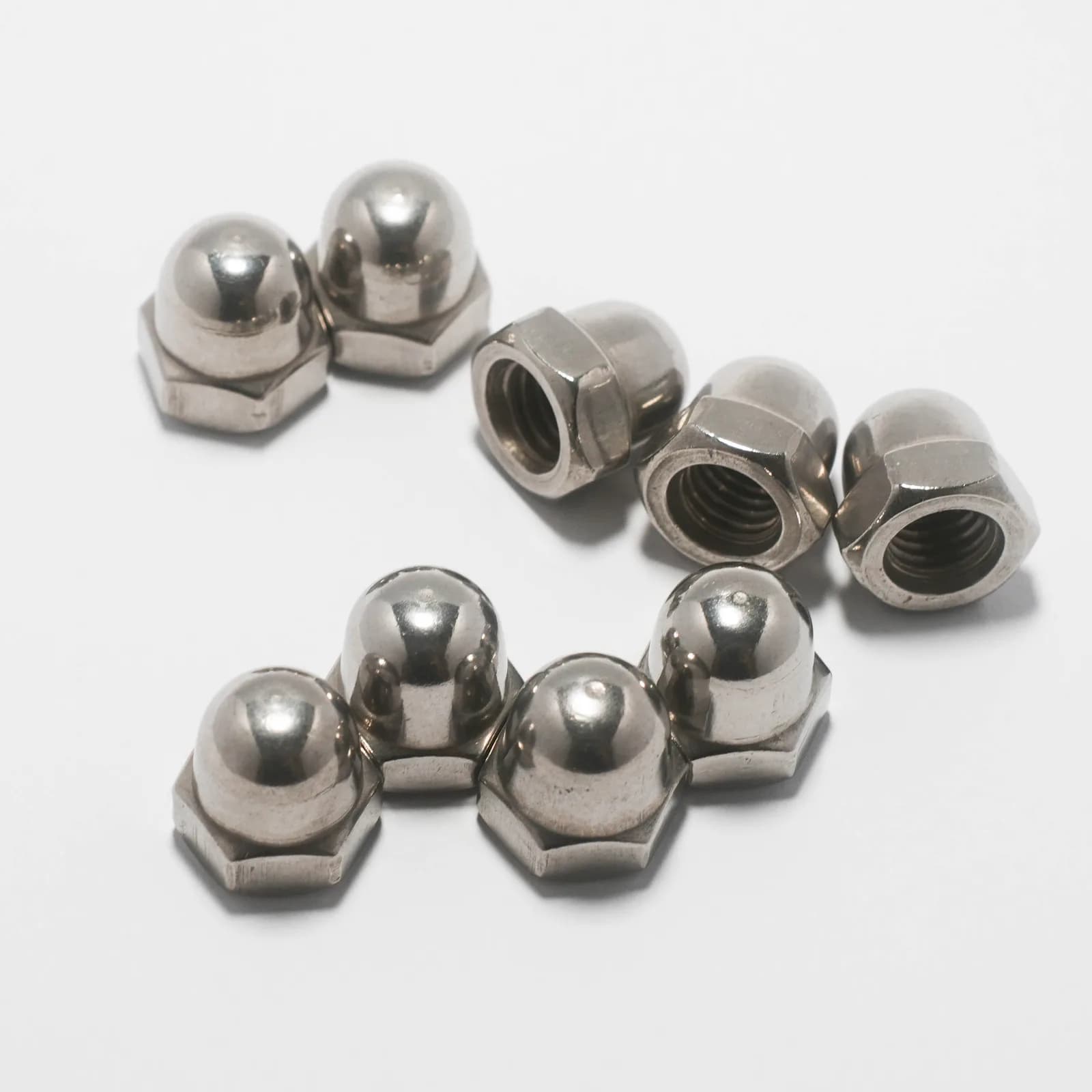

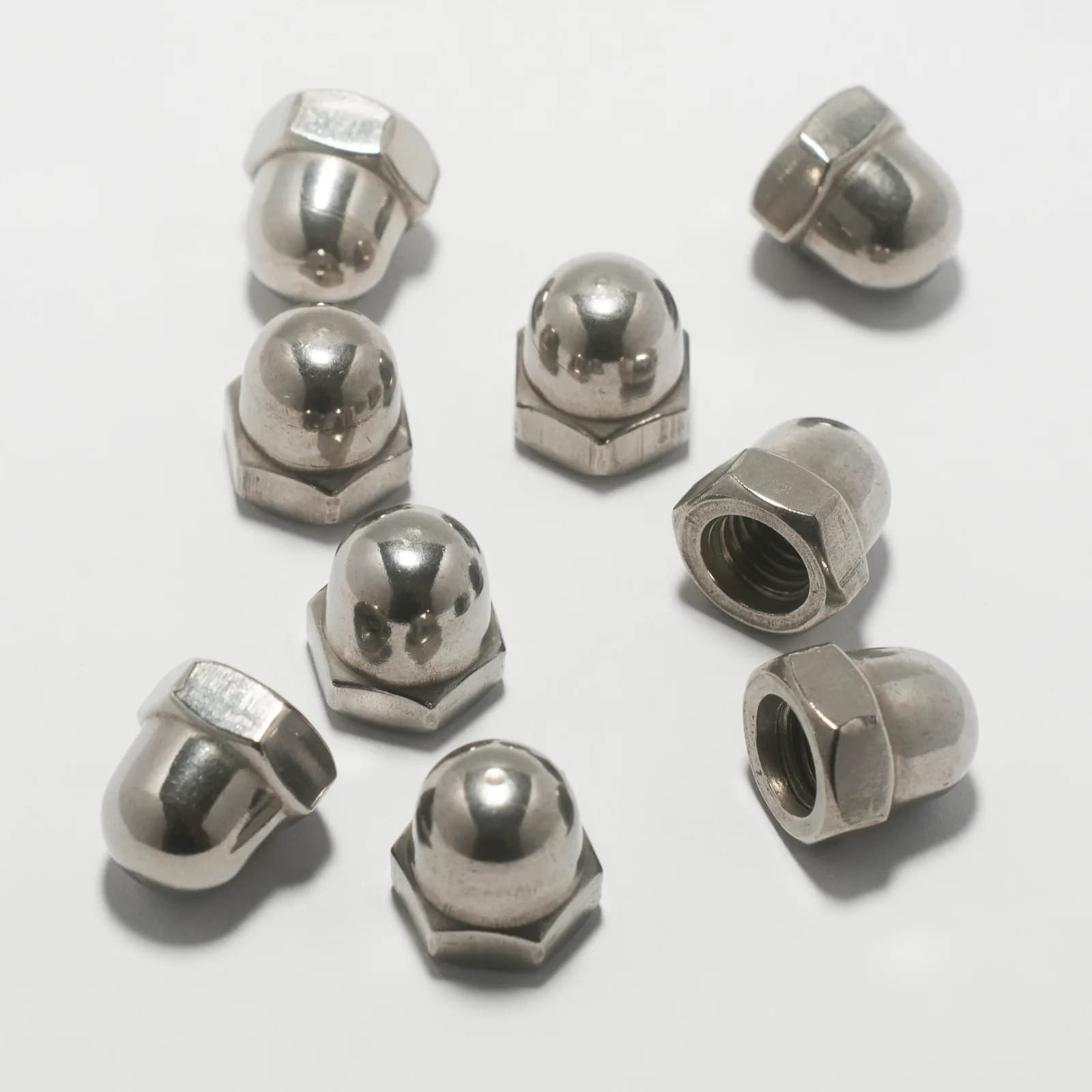

304 Stainless Steel Cap Nuts
Source 304 stainless steel cap nuts through Yulong in Shenzhen, China. A cap nut encloses the projecting end of a bolt. Check the usable internal depth against the mating bolt projection.
- Listed material
- 304 Stainless steel
304 Stainless Steel Cap Nuts quotation details
- Thread and pitch
- across flats
- overall height
- usable thread depth
- mating bolt projection
- dome shape
Configuration, minimum quantity and lead time are reviewed with your inquiry.
304 Stainless Steel Cap Nuts: sizes, material & specifications
Use these discrete specifications to identify your part. Length choices apply only to the thread size on the same row. Other sizes, drawing tolerances and order availability can be reviewed with your inquiry.
| Thread size | Pitch | Material | Standard / drawing reference | Drawing dimensions (mm) |
|---|---|---|---|---|
| M10 | Confirm on drawing | A2 (AISI 304) | DIN 1587 | Overall H=18; SW=17 mm |
| M12 | Confirm on drawing | A2 (AISI 304) | DIN 1587 | Overall H=22; SW=19 mm |
| M16 | Confirm on drawing | A2 (AISI 304) | DIN 1587 | Overall H=28; SW=24 mm |
| M20 | Confirm on drawing | A2 (AISI 304) | DIN 1587 | Overall H=34; SW=30 mm |
Material and drawing selection
Total nut height is different from usable internal thread depth. Confirm clearance for the projecting bolt end.
Drawing & sample review
Share a drawing, photograph or existing part reference. Any deviations from the listed product form can be reviewed before quotation.
Quality & packing
Inspection, documentation and packing requirements are agreed for each order.
