Drawing & revision
Identify the approved drawing, revision and specification in the order confirmation.
DRAWING-BASED CUSTOM FASTENERS
Your design.
Every detail
considered.
Custom dimensions. Purposeful details. Parts specified for your assembly.
From shoulder pins to special threaded components, share your drawing or sample with our Shenzhen team to start a technical review.
Drawing review Sample coordination Order support
CUSTOMIZATION SCOPE
Dimensions & tolerances
Threads & end features
Materials & finishes
Samples & packing
A CLOSER LOOK
Details that define the part.
Explore the supplied product photographs, from machined shoulders and cross holes to special heads and threaded ends. Select an image to inspect the detail.

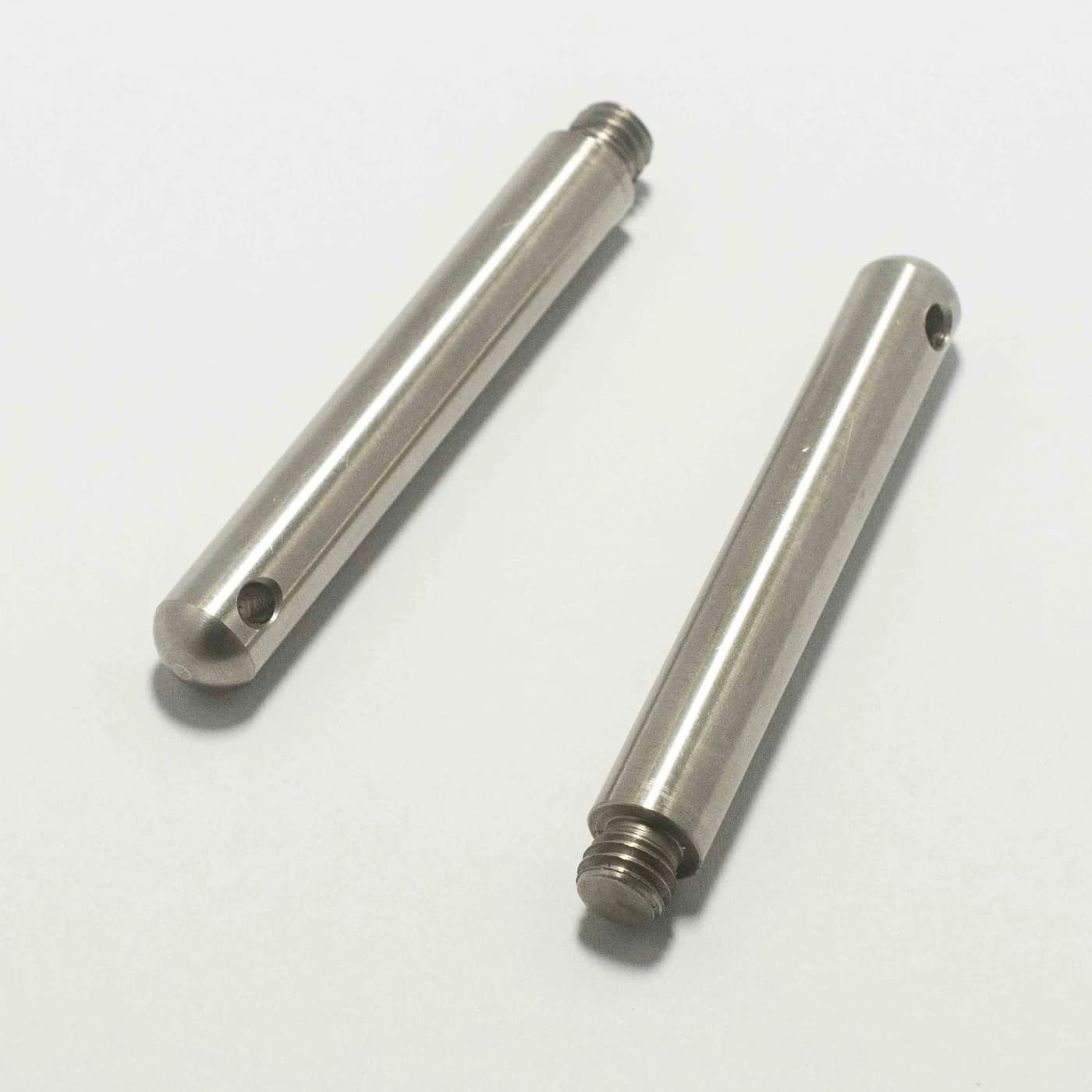

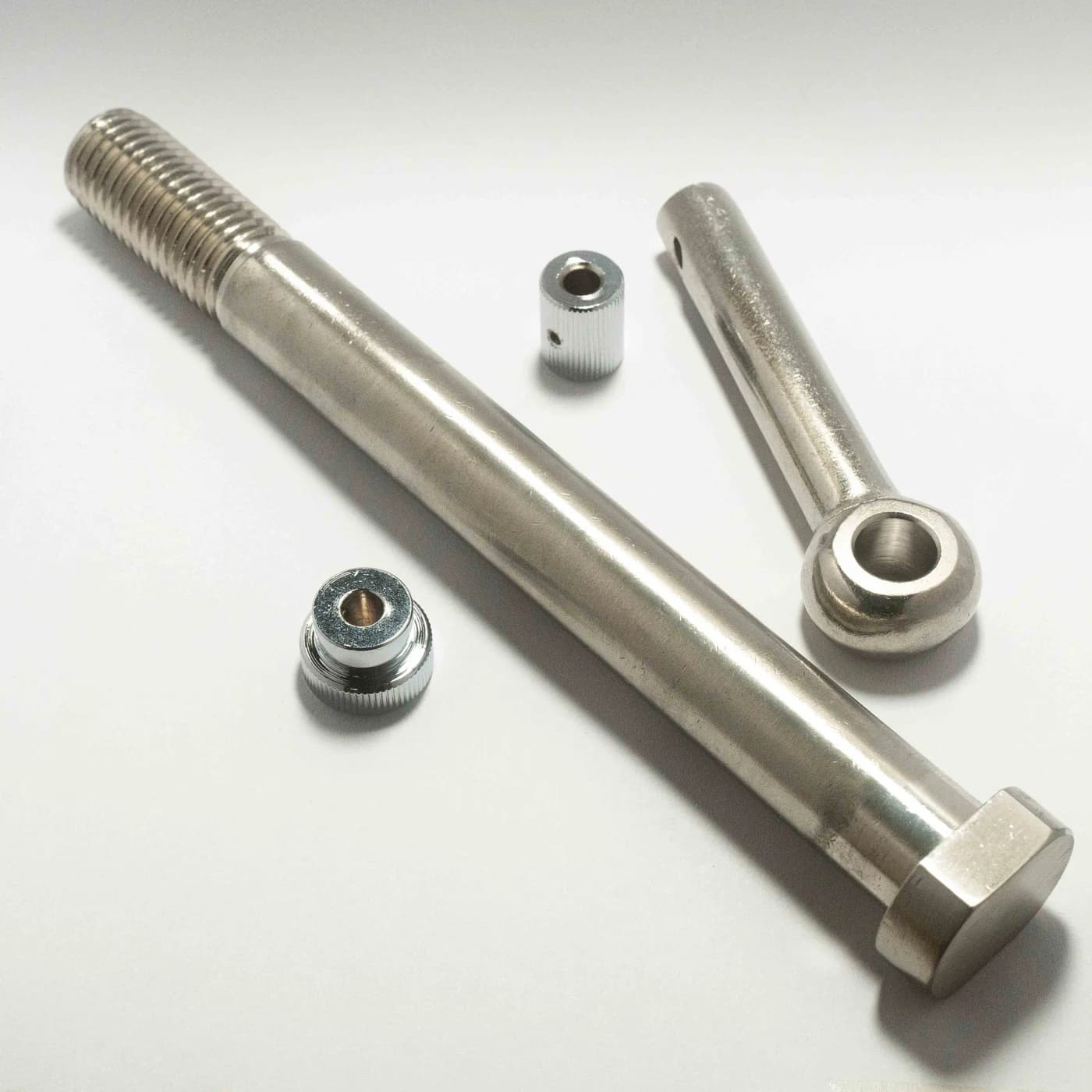

Eye-end & threaded pins
Cross holes · stepped diameters · threaded ends

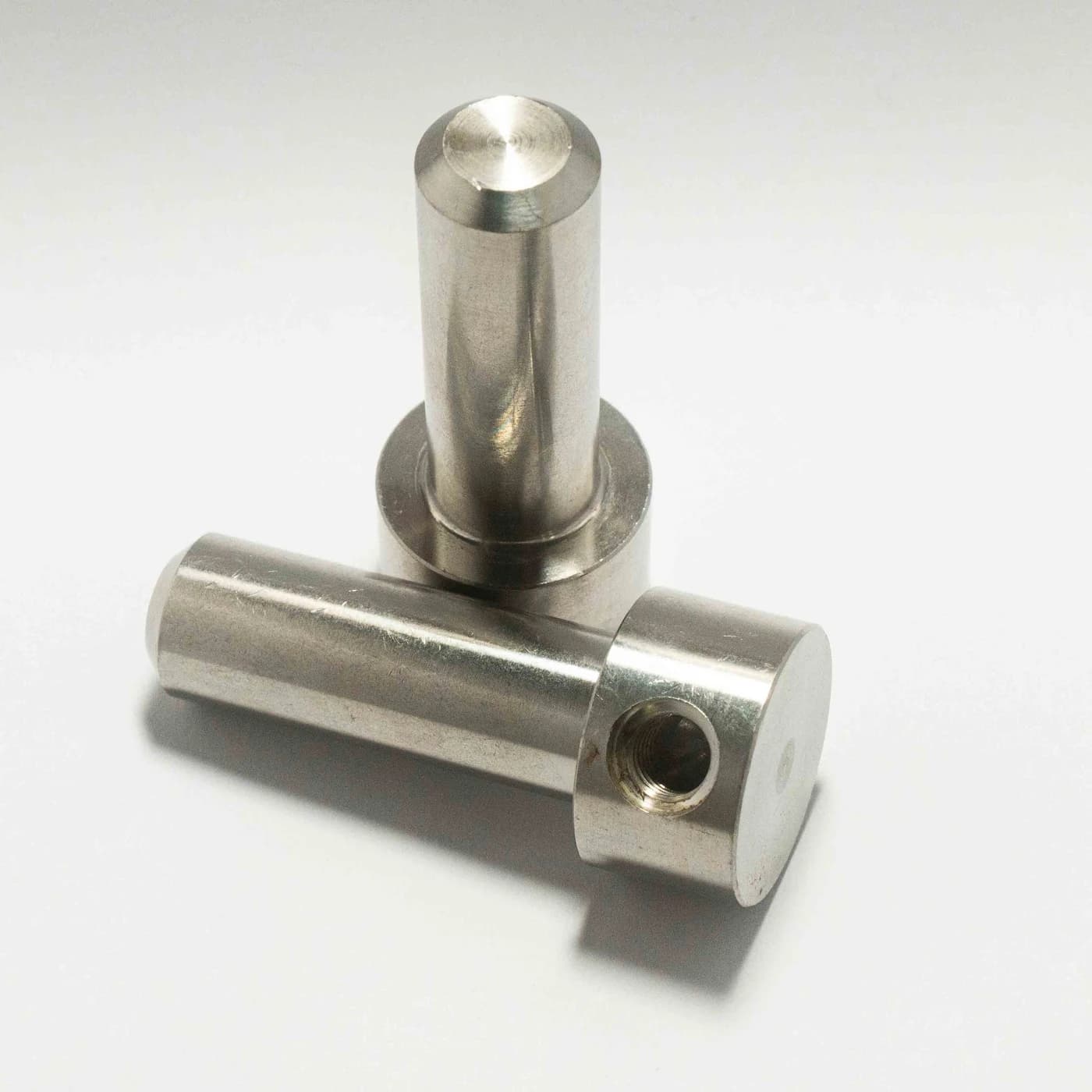

Cross-drilled components
Radial holes · shoulder profiles · end features

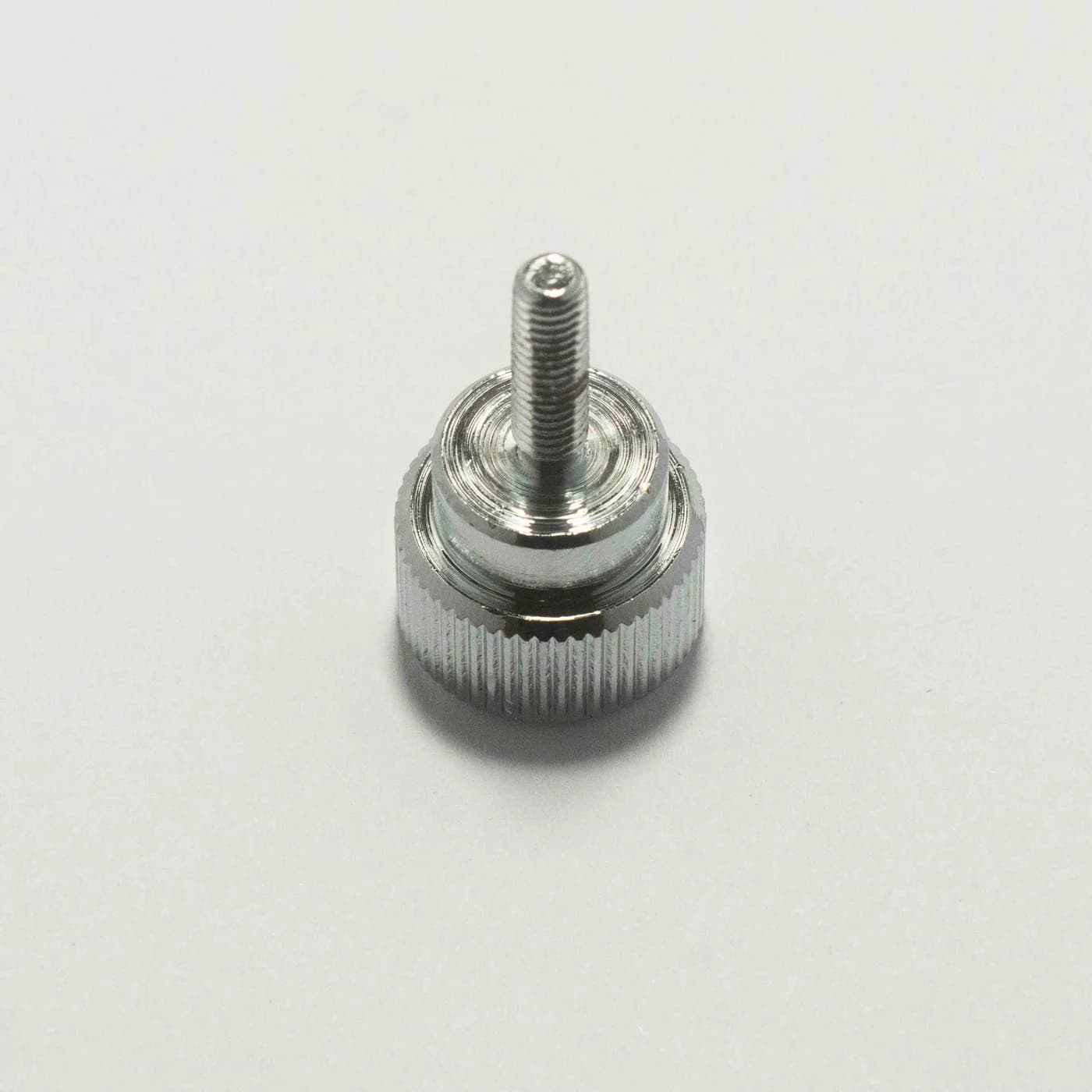

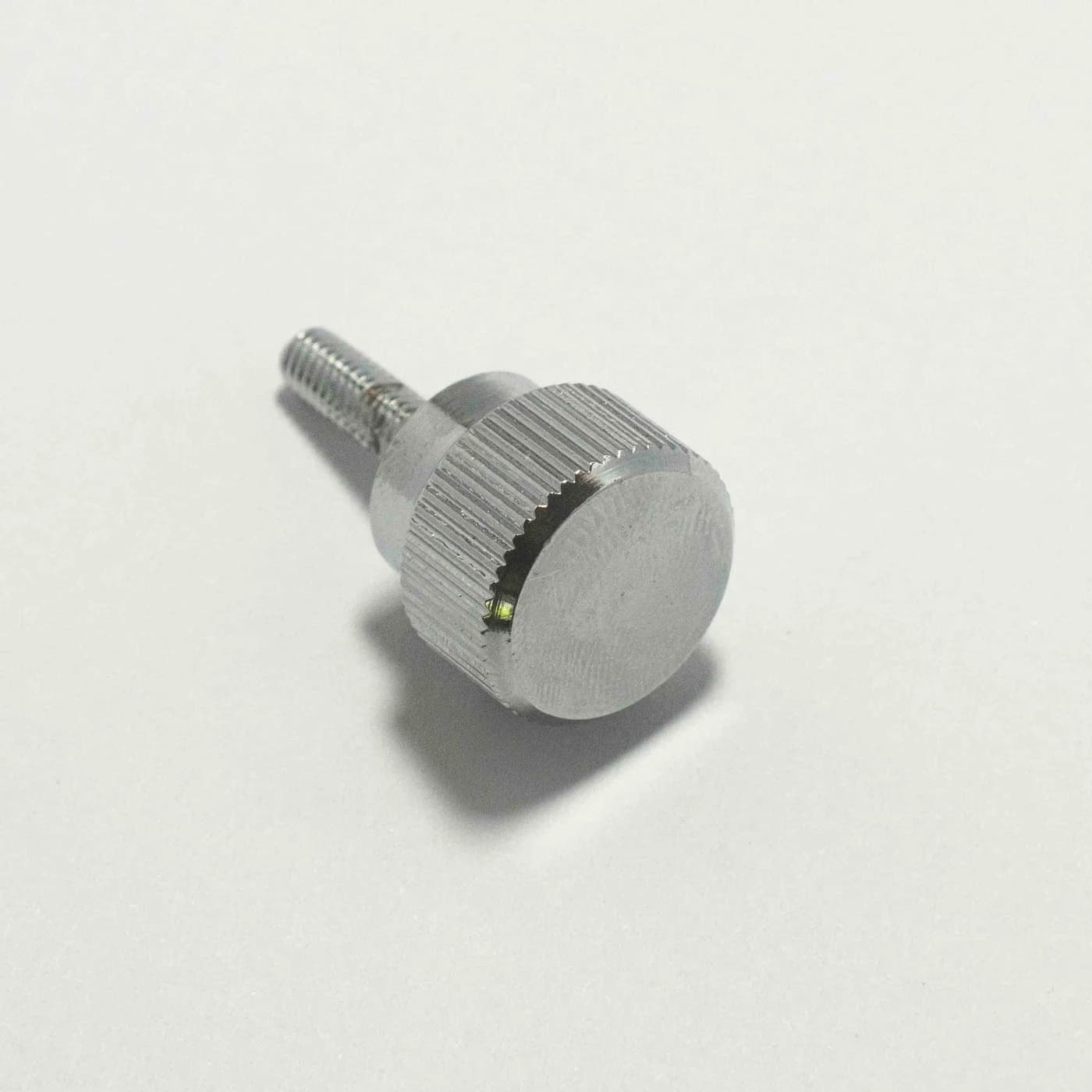

Knurled thumb screws
Grip pattern · slotted drive · head diameter

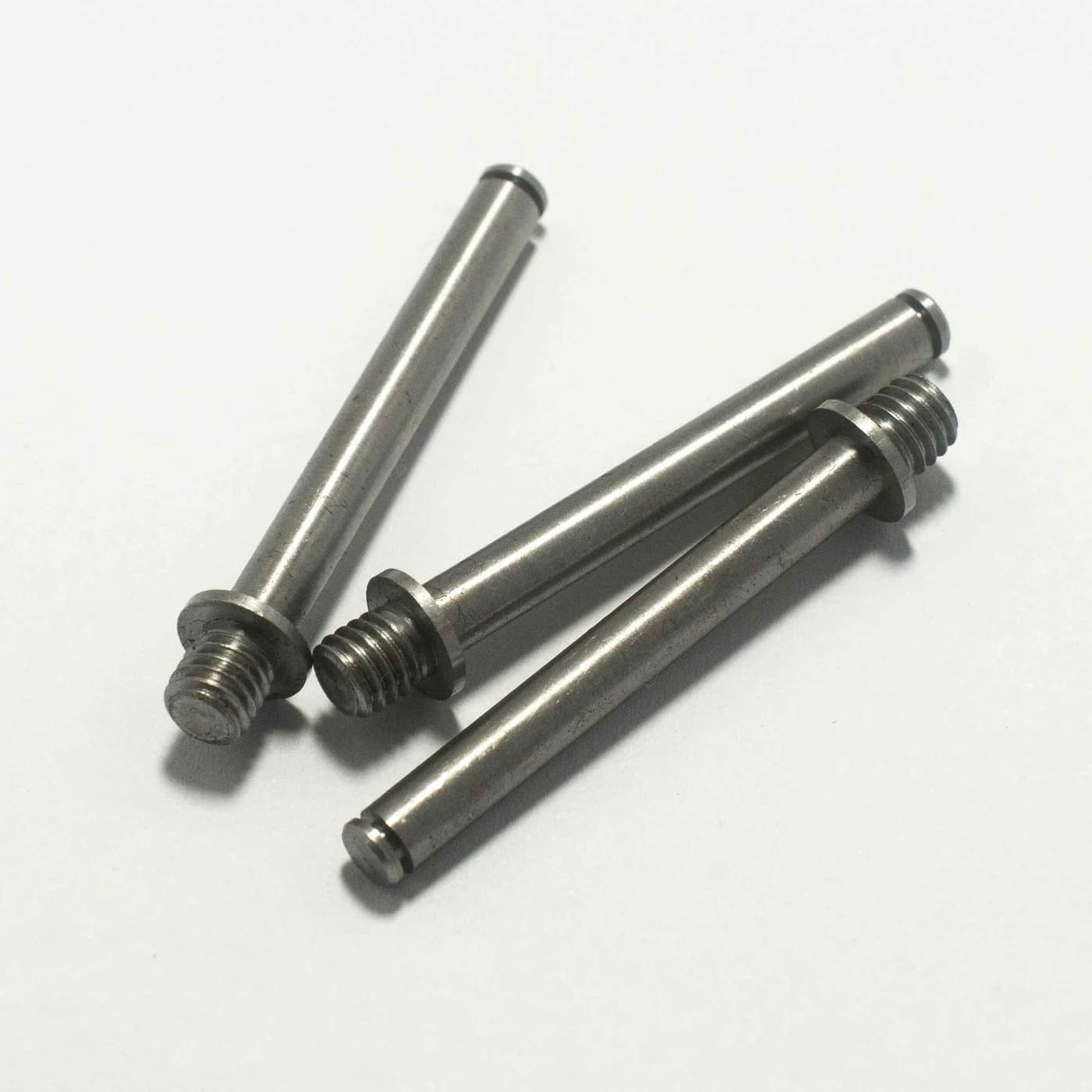

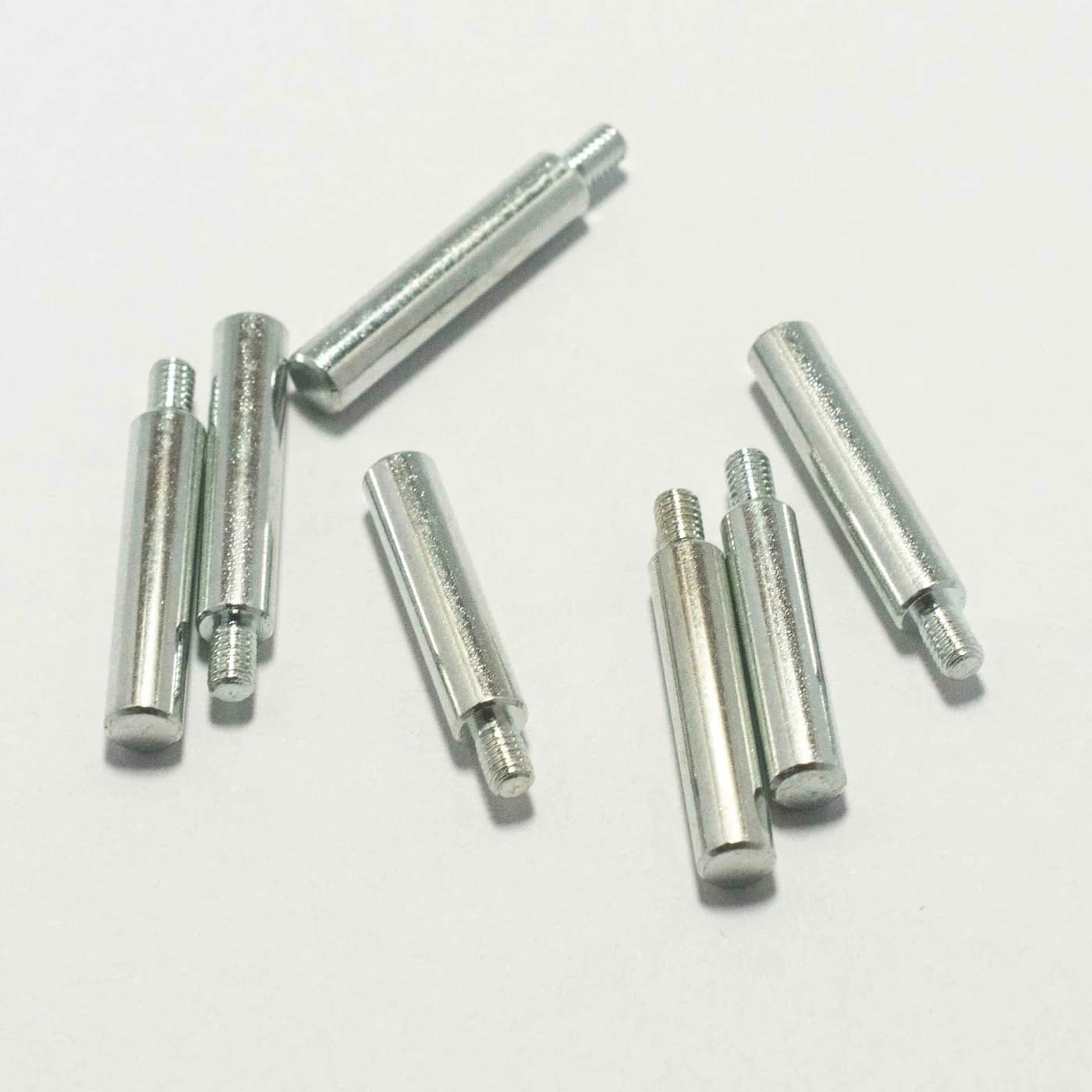

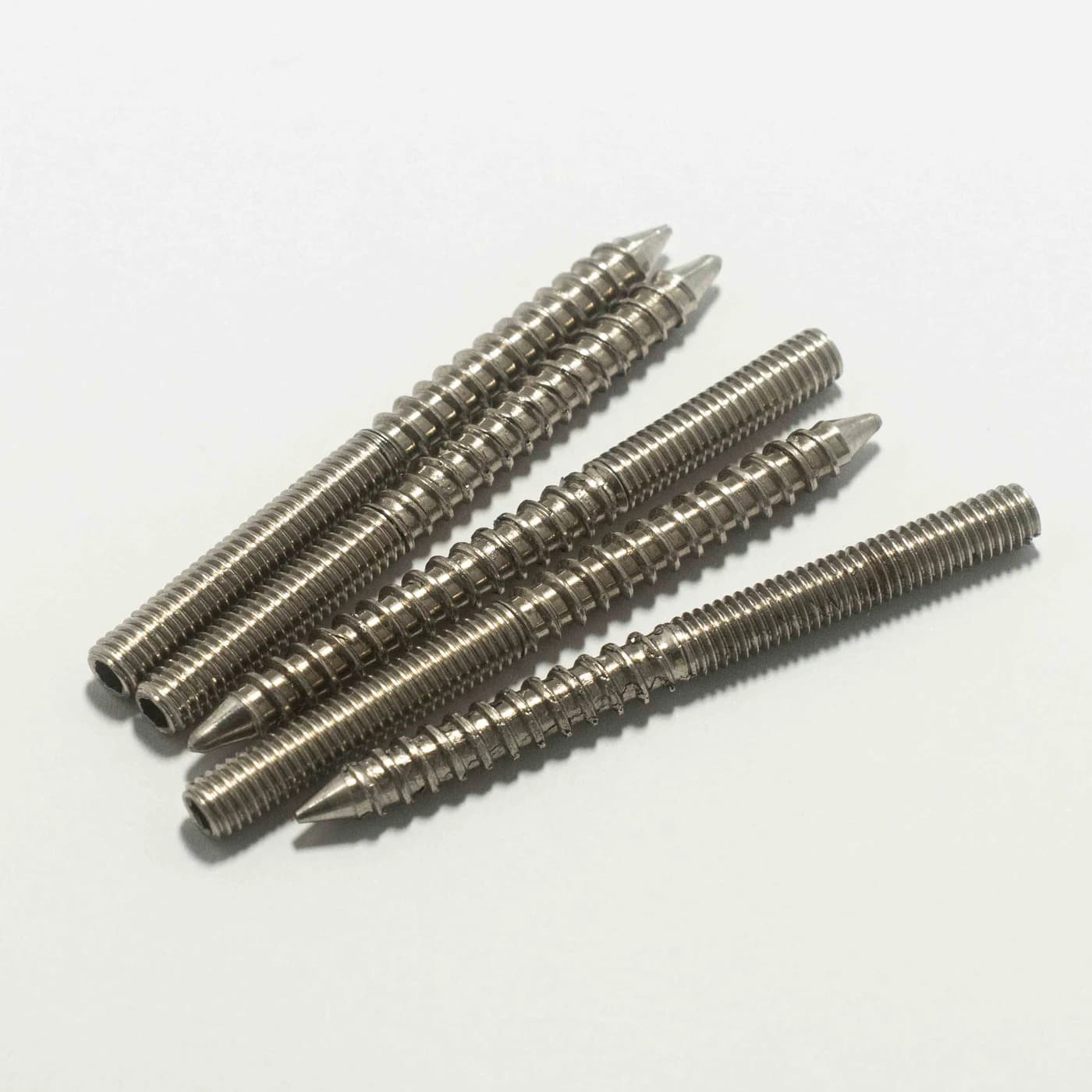

Special threaded studs
Thread length · pitch · end geometry

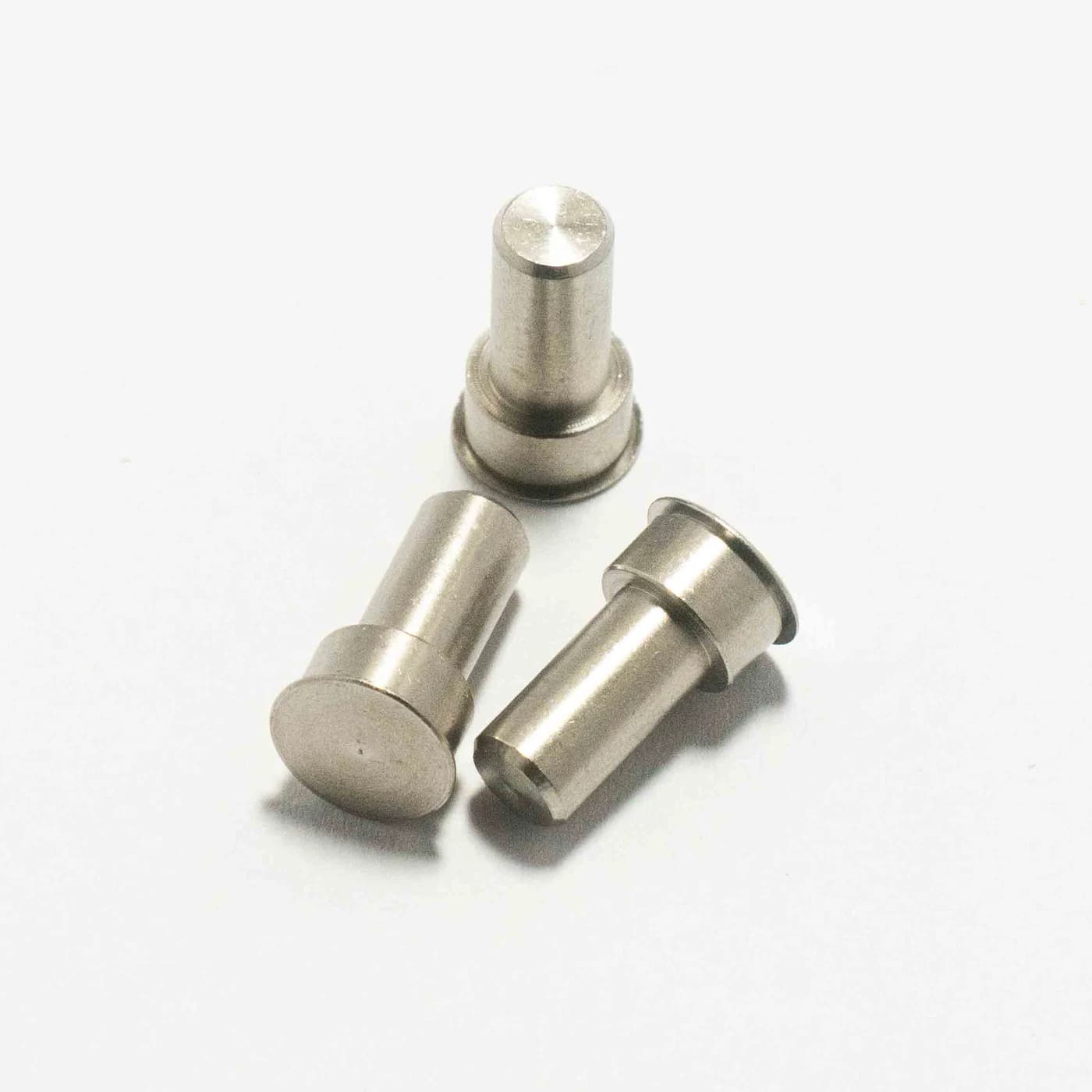

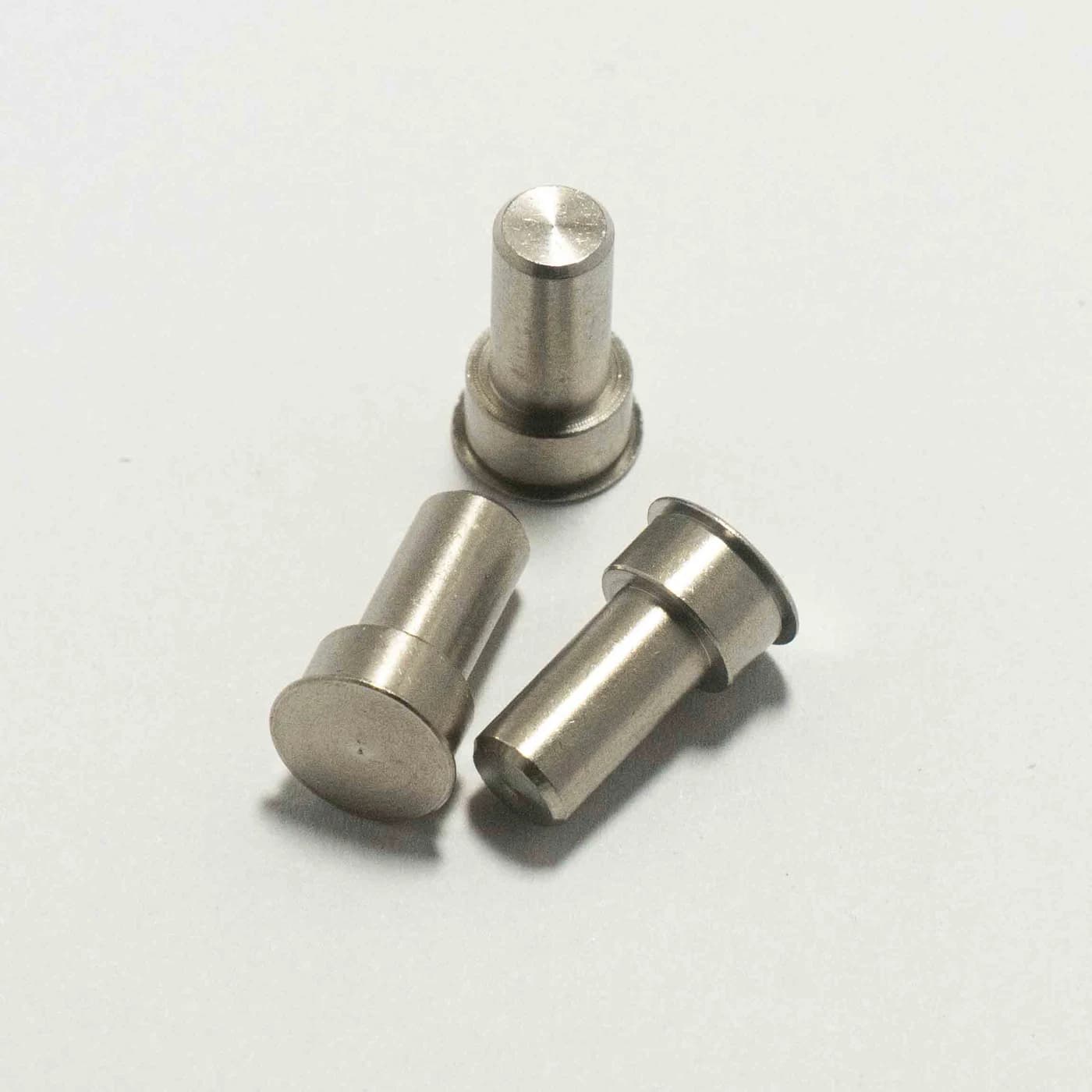

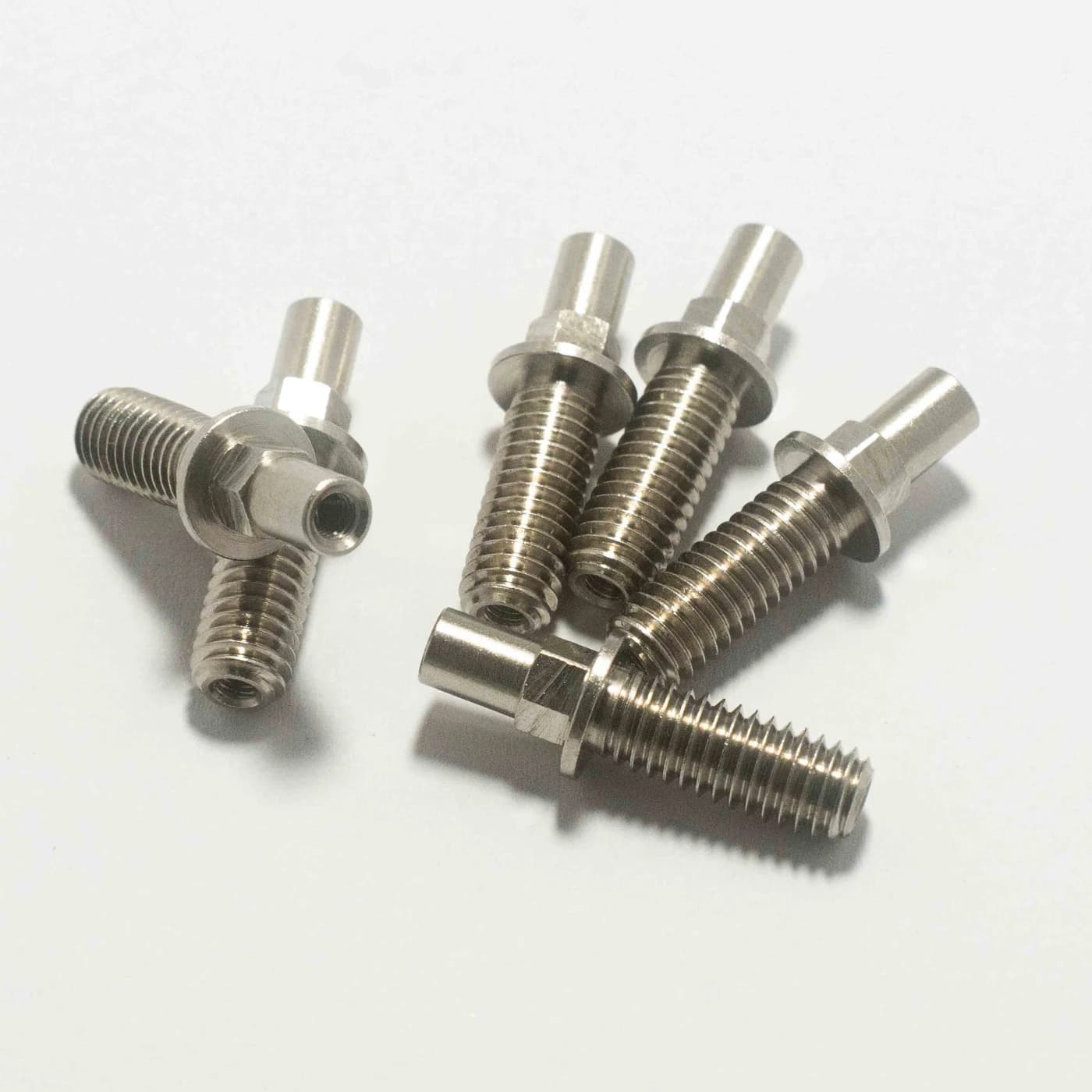

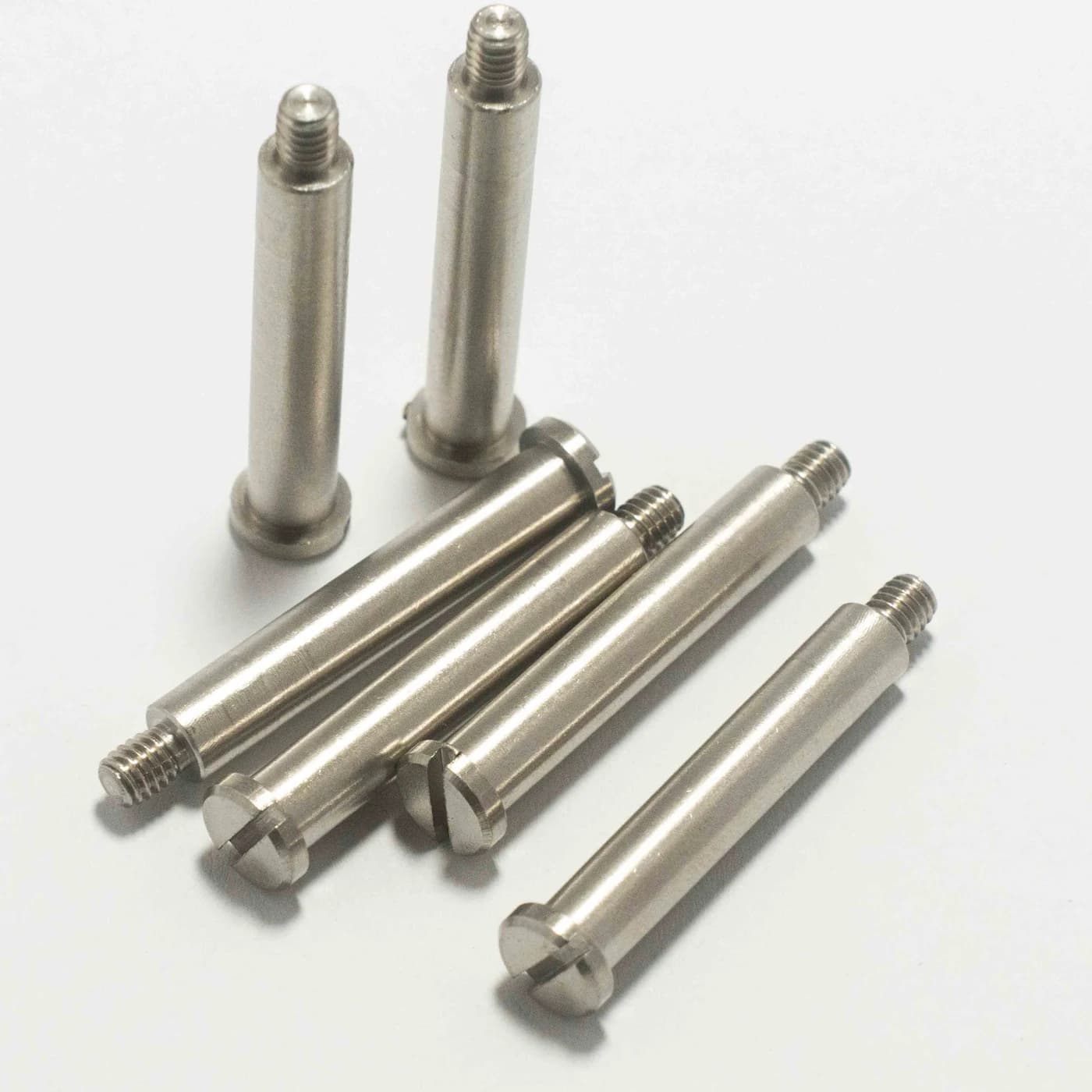

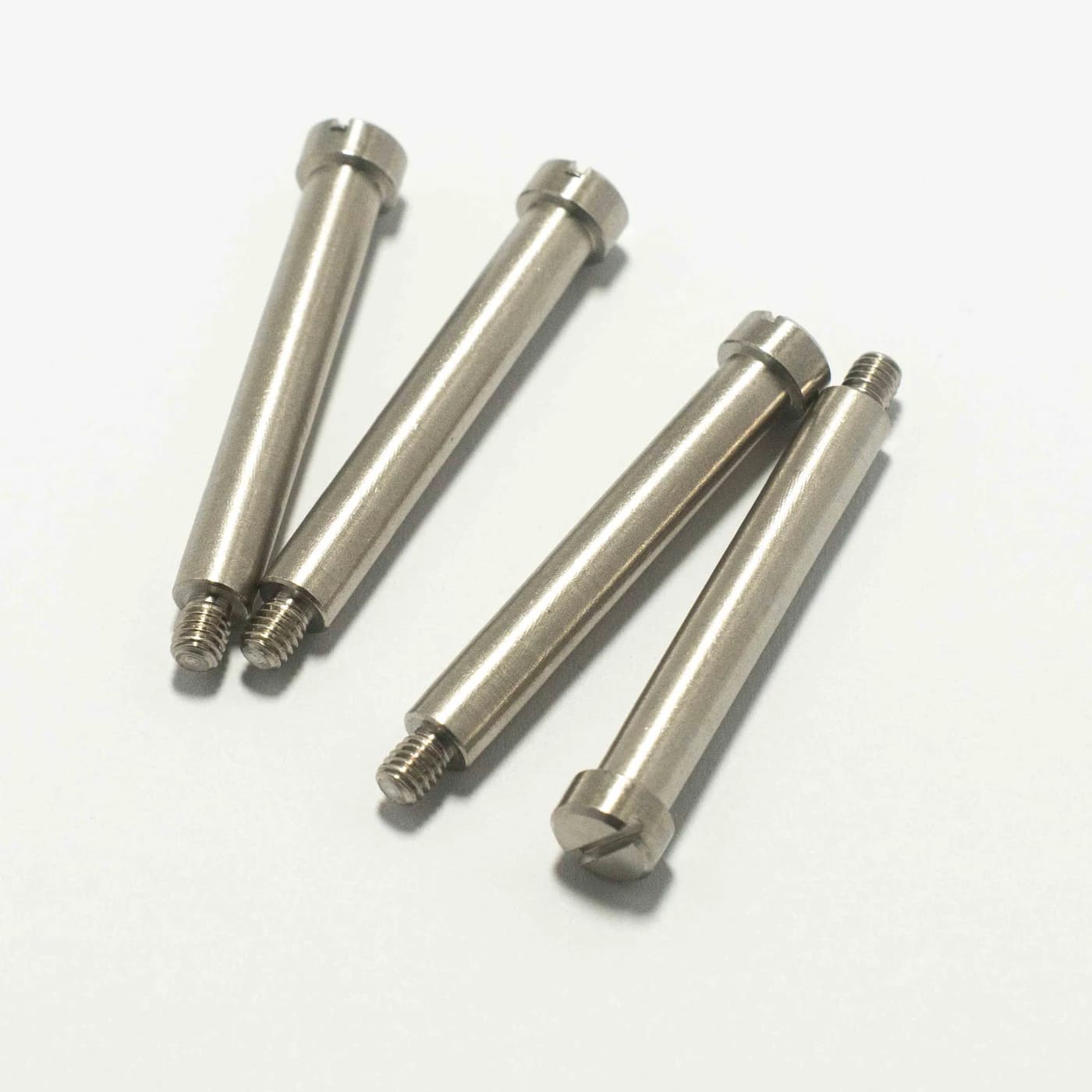

Shoulder & flanged screws
Shoulder length · flange diameter · thread form
Shafts & mating components
Overall length · end connections · assembly fit
More custom part references.
START WITH THE SPECIFICATION
A clear drawing.
A shared understanding.
Define the features that matter to your assembly. We use your drawing revision and requirements to coordinate a review before quotation.
01
Geometry & dimensions
Overall length, diameters, shoulders, cross holes and critical tolerances.
02
Thread & assembly
Thread form, pitch, engagement length and mating-part requirements.
03
Material & surface
Material designation, property class, surface treatment and appearance.
04
Quantity & documentation
Order quantity, drawing revision, sample needs and inspection records.
ENGINEERING DRAWINGS / 10 REFERENCES
Designed around the detail.
Explore dimensions, section views and connection features across our drawing references. Select any drawing to enlarge it and browse the complete set.

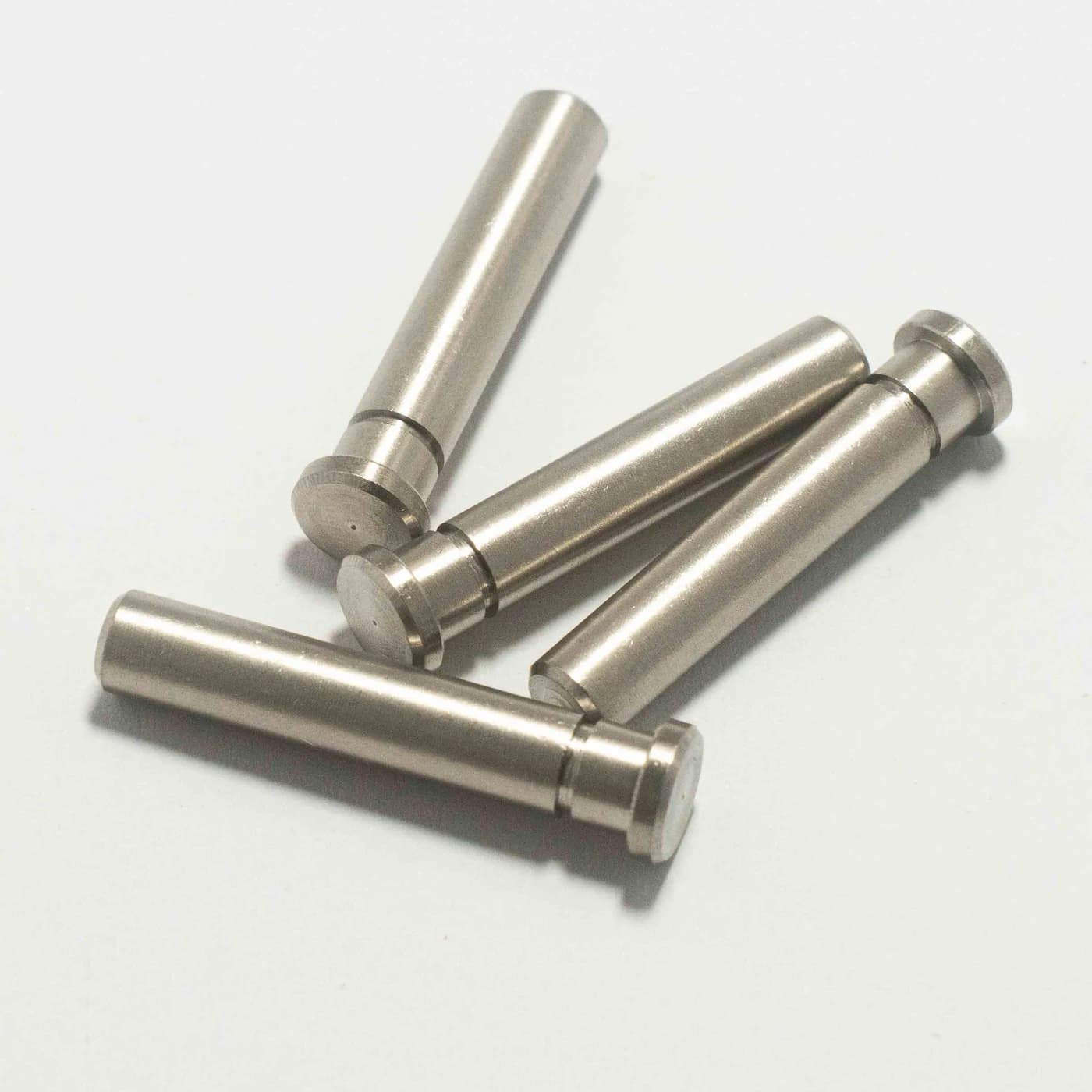

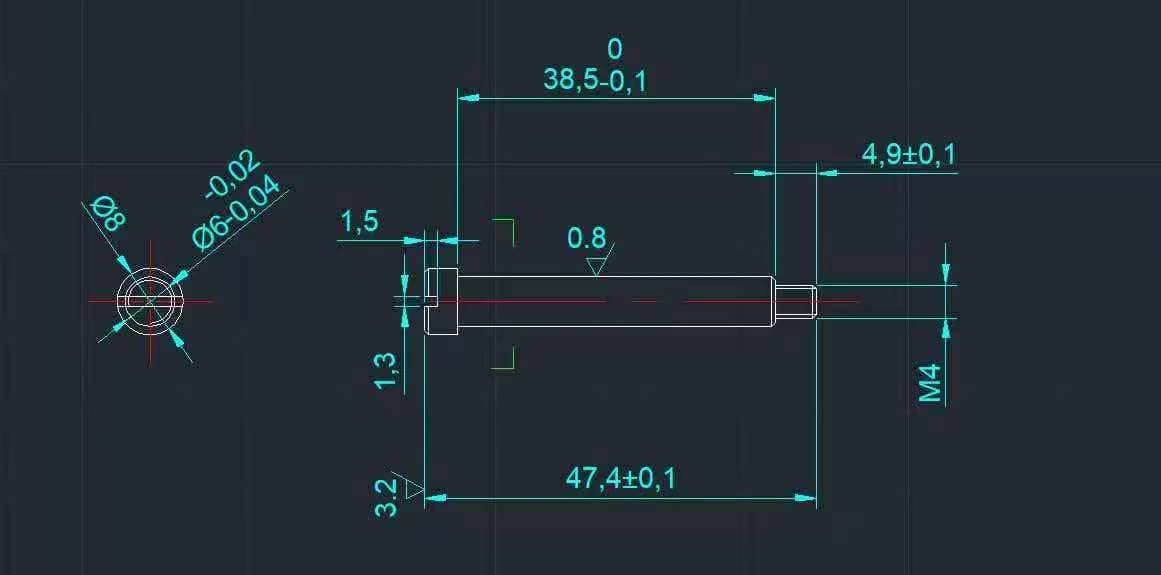

Stepped pin dimensions

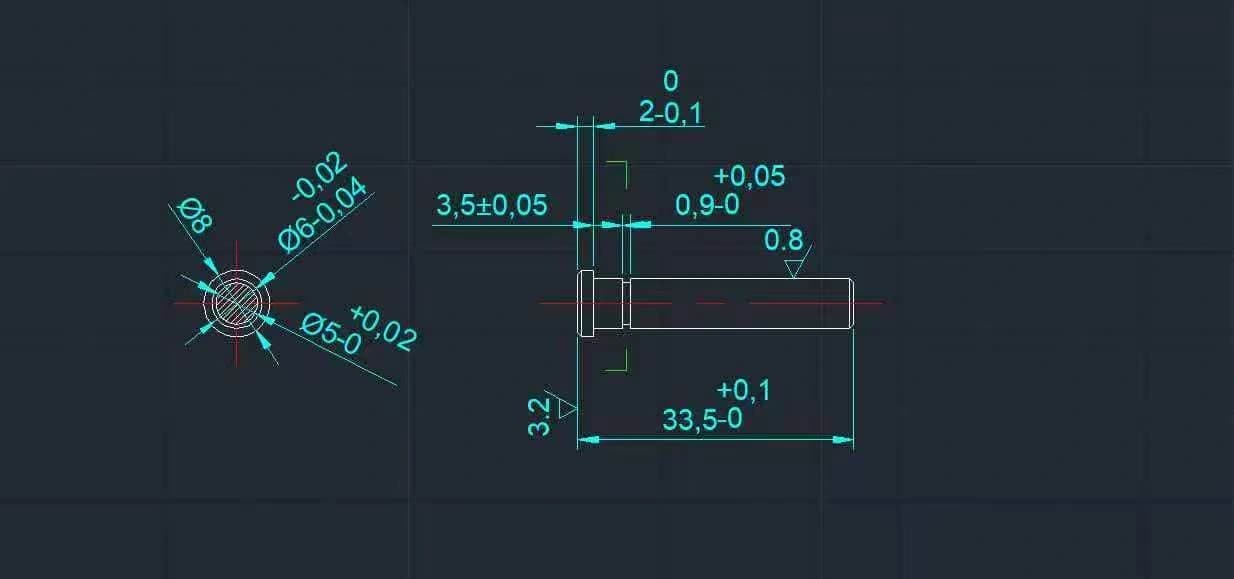

Short pin dimensions

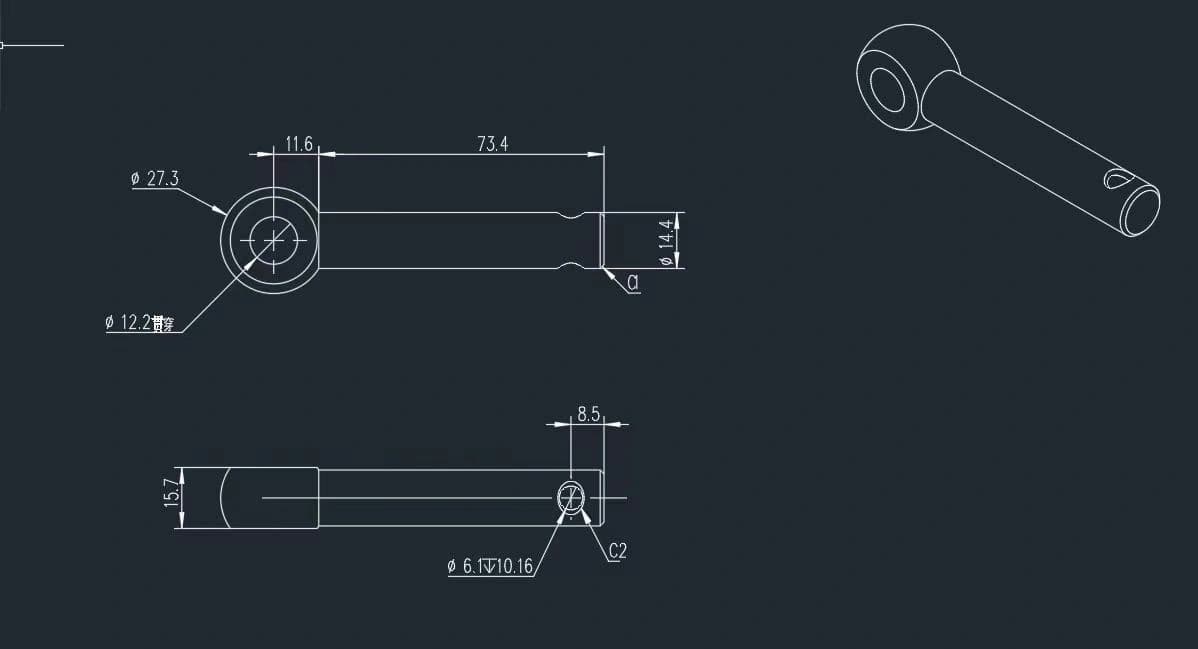

Eye-end component

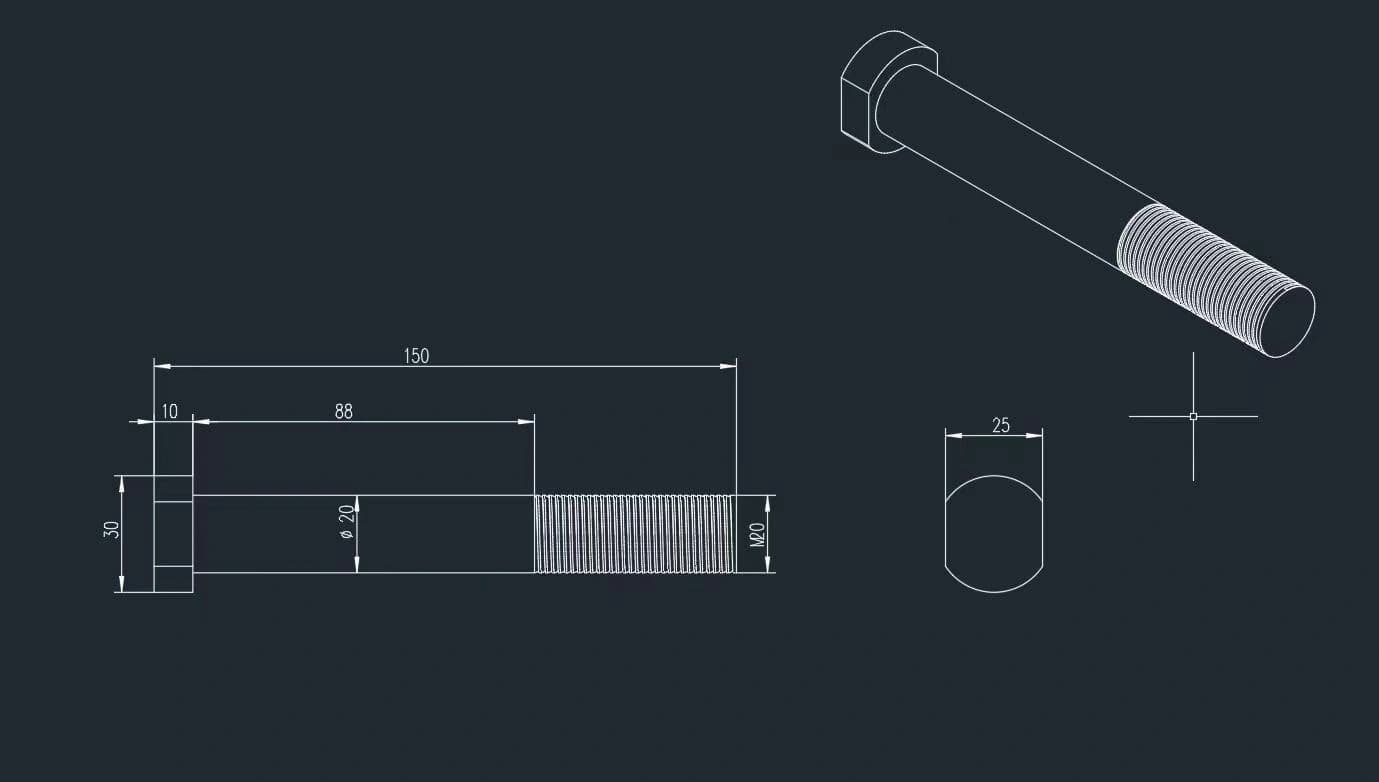

Headed threaded shaft

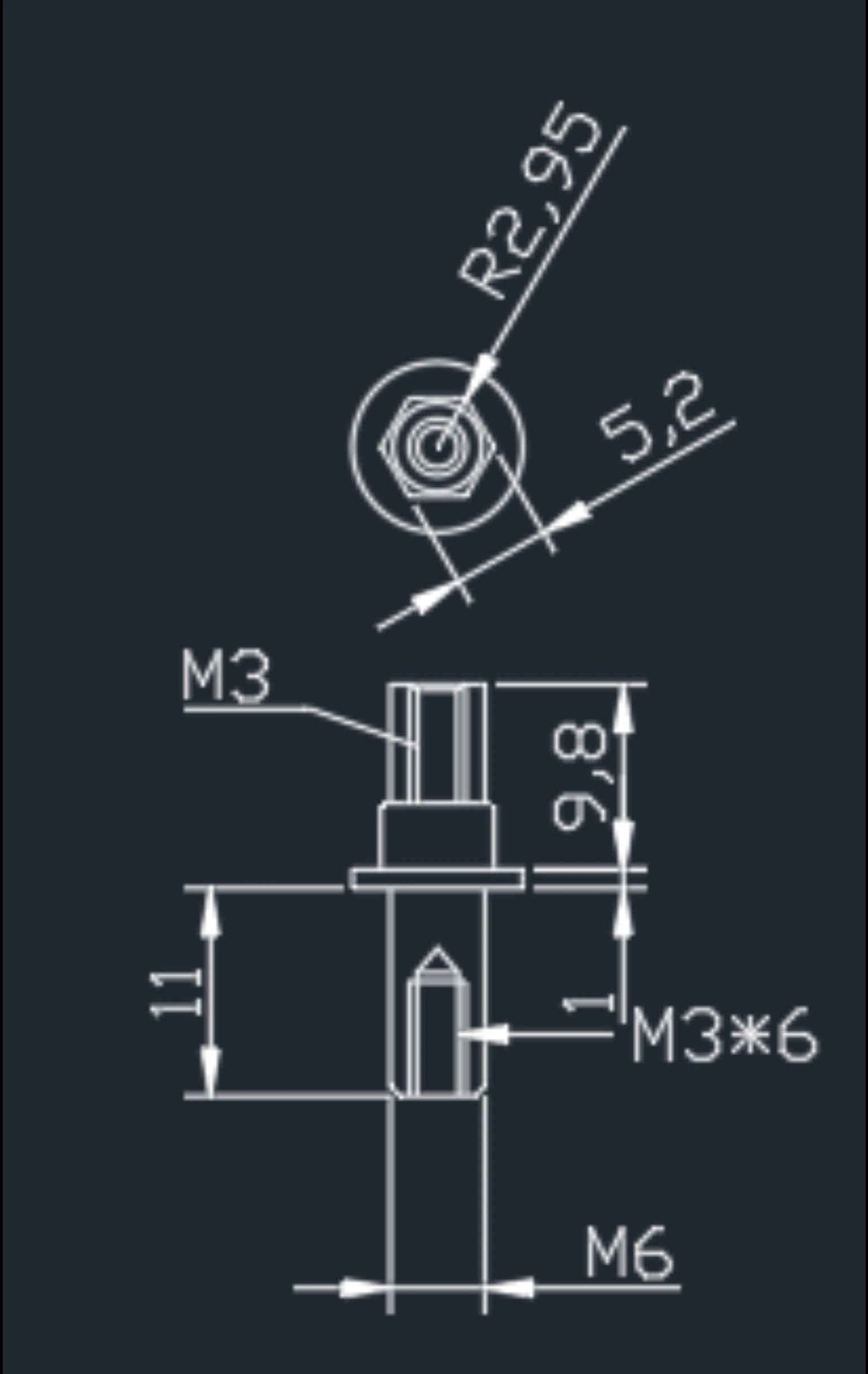

Stepped stud details

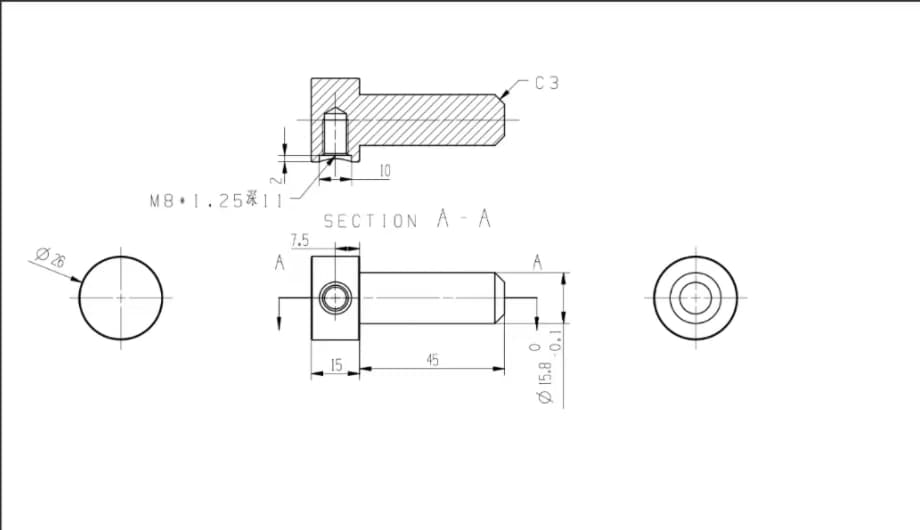

Section & end views

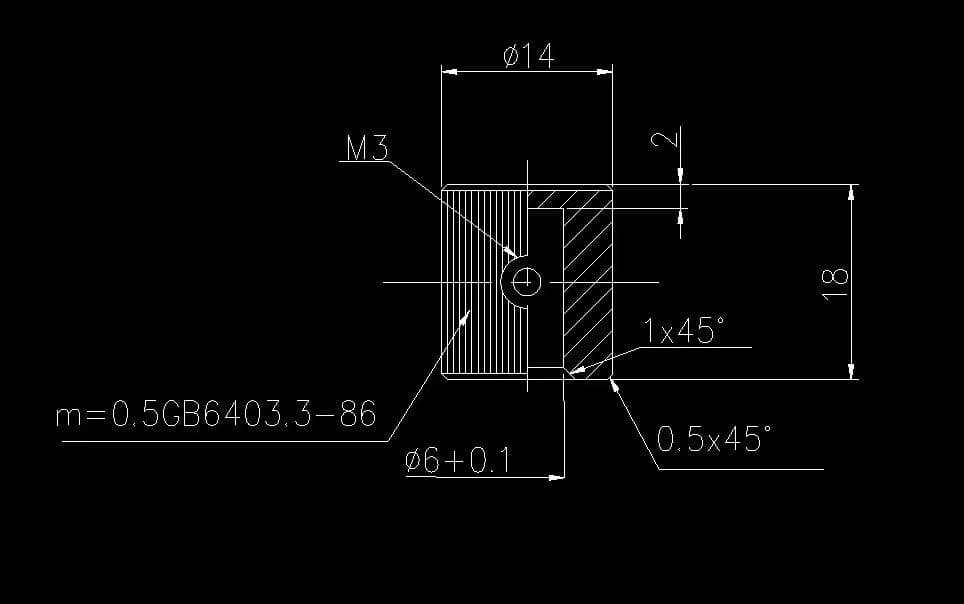

Internal thread section

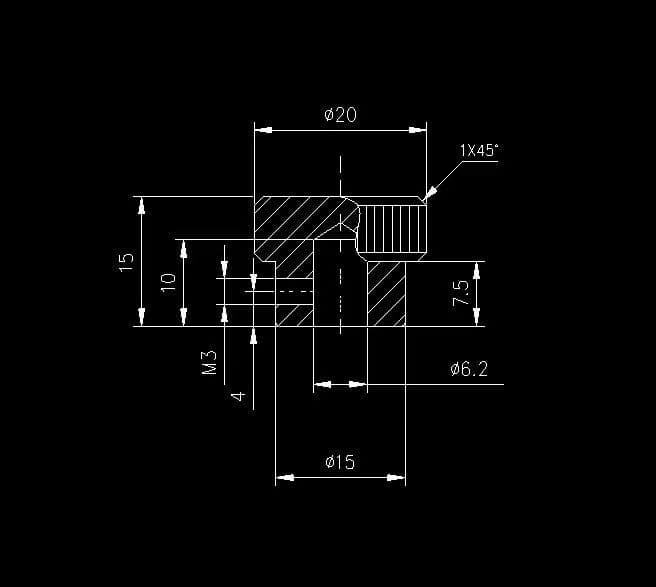

Flanged component section

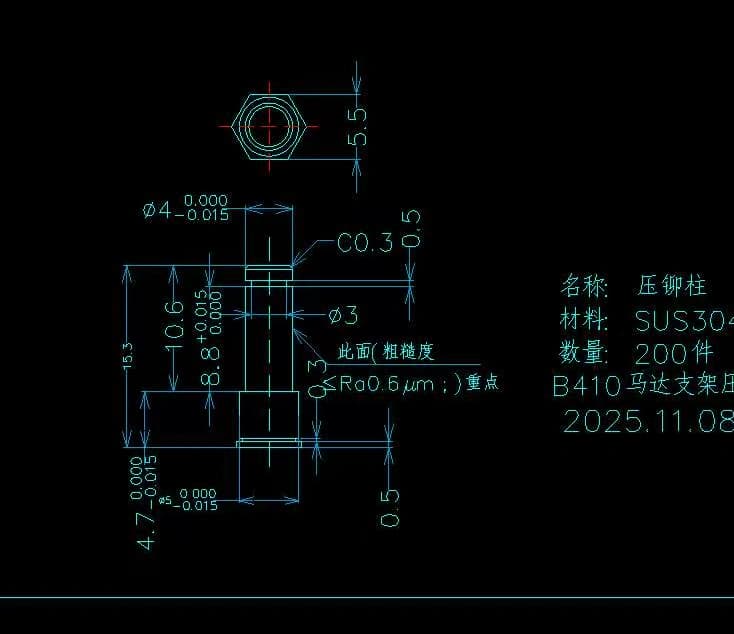

Flanged profile dimensions

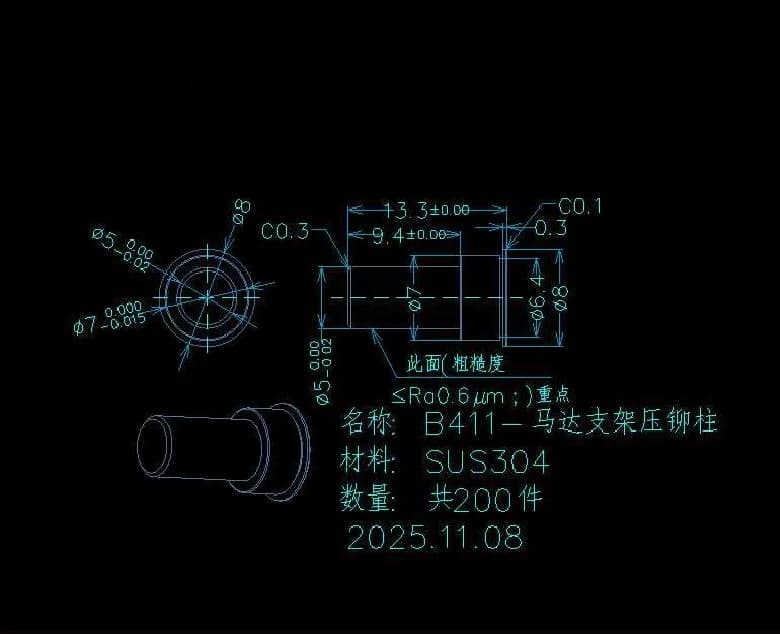

Bored profile dimensions
FROM INQUIRY TO ORDER
A considered process.
At every step.
Part geometry, material and quantity determine the production route. Sampling, tooling costs and delivery timing are confirmed with the quotation.
- 01
Share your requirements
Send a drawing, photograph or sample reference, together with the quantity and intended application.
- 02
Review & quotation
We review feasibility with manufacturing partners and confirm material, pricing, minimum quantity, tooling and lead time.
- 03
Confirm the sample
Where sampling is agreed, confirm the sample and inspection requirements before proceeding with the bulk order.
- 04
Order & delivery
Supply follows the agreed specification, checks, packaging and shipping arrangements.
QUALITY & ORDER DETAILS
Specified together.
Agreed before supply.
Inspection scope, documentation and packing requirements form part of the order discussion.
Talk through your requirementsChecks & records
Agree dimensional, thread and appearance checks, along with any required documents and costs.
Packing & labels
Specify pack quantities, part identification and any special protection requirements.
Delivery & follow-up
Confirm shipping terms and timing. Reference the order when discussing any discrepancies.
Discuss your requirements
A drawing, sample reference or parts list is enough to start the conversation. Dimensions and commercial terms are confirmed with your quotation.
