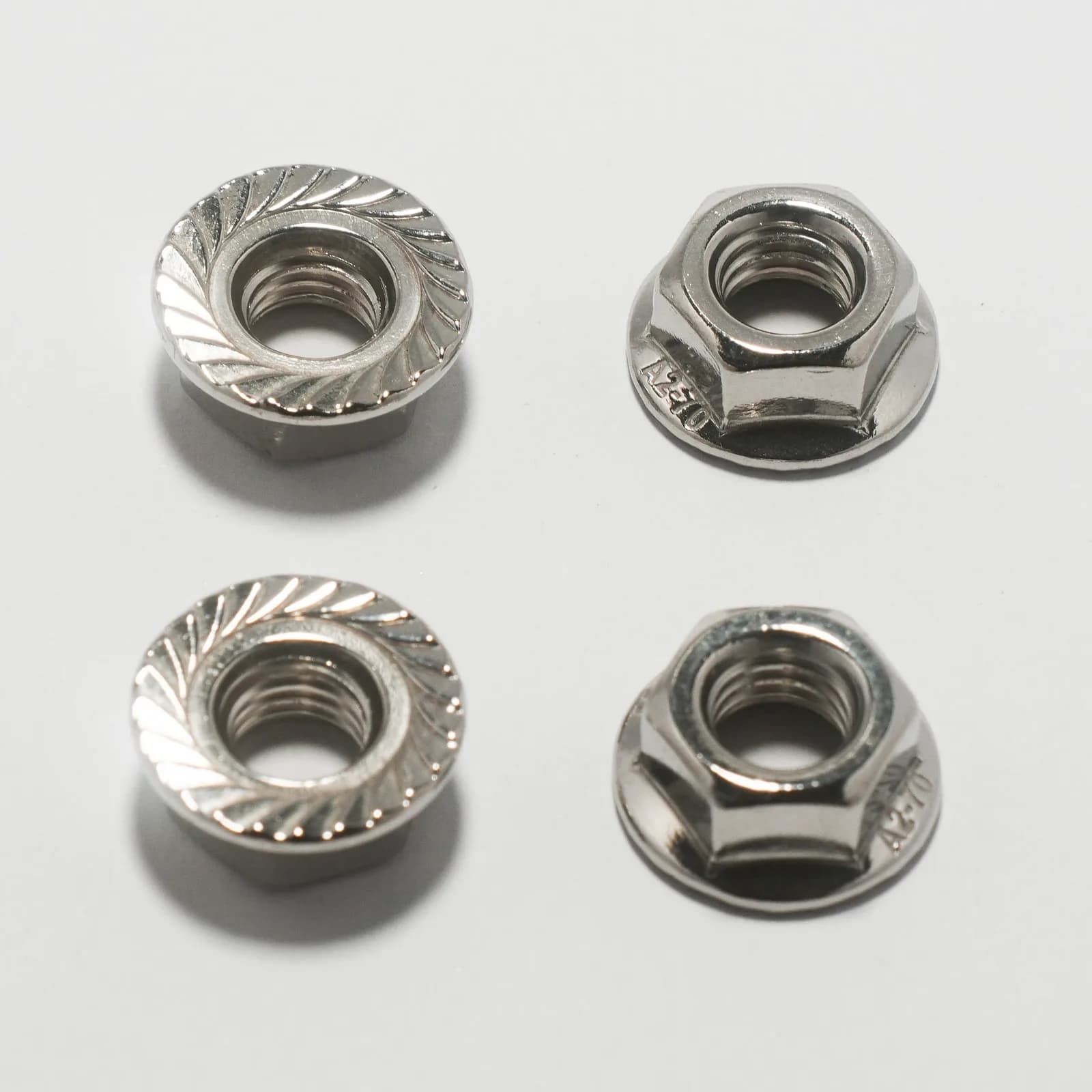

EnlargeRepresentative product photography. The supplied configuration is agreed with your order.
304 Stainless Steel Flange Nuts
Source 304 stainless steel flange nuts through Yulong in Shenzhen, China. Flange nuts include an enlarged bearing face. A smooth face and a serrated face have different installation requirements.
- Listed material
- 304 Stainless steel
304 Stainless Steel Flange Nuts quotation details
- Thread and pitch
- serrated or smooth flange
- flange diameter
- nut height and across flats
- material and grade
Configuration, minimum quantity and lead time are reviewed with your inquiry.
304 Stainless Steel Flange Nuts: sizes, material & specifications
Use these discrete specifications to identify your part. Length choices apply only to the thread size on the same row. Other sizes, drawing tolerances and order availability can be reviewed with your inquiry.
| Thread size | Pitch | Material | Standard / drawing reference | Drawing dimensions (mm) |
|---|---|---|---|---|
| M8 | Confirm on drawing | A2 (AISI 304) | DIN 6923 | SW=13; Height m=8; Flange dc=17.9 mm |
| M10 | Confirm on drawing | A2 (AISI 304) | DIN 6923 | SW=15; Height m=10; Flange dc=21.8 mm |
| M12 | Confirm on drawing | A2 (AISI 304) | DIN 6923 | SW=18; Height m=12; Flange dc=26 mm |
Material and drawing selection
The listed DIN 6923 references have serrated flanges. Specify a different drawing for a smooth bearing face.
Drawing & sample review
Share a drawing, photograph or existing part reference. Any deviations from the listed product form can be reviewed before quotation.
Quality & packing
Inspection, documentation and packing requirements are agreed for each order.
Order arrangementsRelated product types
Discuss your requirements
A drawing, sample reference or parts list is enough to start the conversation. Dimensions and commercial terms are confirmed with your quotation.
