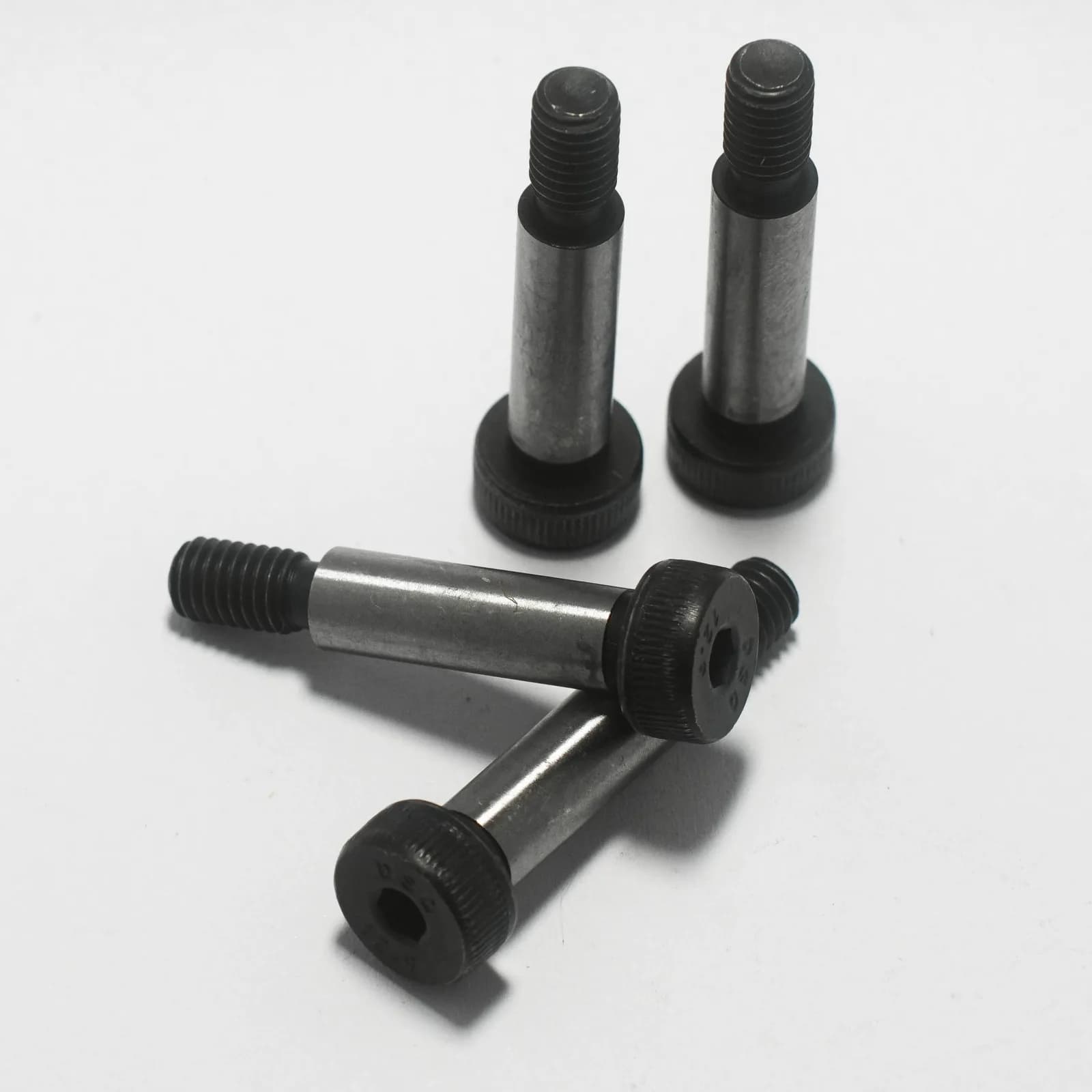

EnlargeRepresentative product photography. The supplied configuration is agreed with your order.
Shoulder Screws
Source shoulder screws through Yulong in Shenzhen, China. A shoulder screw includes an unthreaded bearing section. Shoulder diameter and shoulder length are separate from the thread diameter and thread length.
Shoulder Screws quotation details
- Thread diameter and pitch
- shoulder diameter and tolerance
- shoulder length
- thread length
- head clearance
- required material
Configuration, minimum quantity and lead time are reviewed with your inquiry.
Shoulder Screws: sizes, material & specifications
Use these discrete specifications to identify your part. Length choices apply only to the thread size on the same row. Other sizes, drawing tolerances and order availability can be reviewed with your inquiry.
| Dimensions (mm) | Pitch | Material | Standard / drawing reference | Drawing dimensions (mm) |
|---|---|---|---|---|
| M5; shoulder Ø6 × 8 mm | 0.8 mm | Stainless Steel - (A2) | Drawing-specific | Shoulder diameter 6 +0/-0.025; Shoulder length 8 +0.05/-0; Thread length 6; Head diameter 10; Head height 5; Hex drive 3 mm |
Material and drawing selection
The M5 × 0.8 thread is separate from the Ø6 shoulder. Shoulder length is 8 mm and threaded length is 6 mm. This A2 reference is not standardised; no ISO 7379 conformity is claimed.
Drawing & sample review
Share a drawing, photograph or existing part reference. Any deviations from the listed product form can be reviewed before quotation.
Quality & packing
Inspection, documentation and packing requirements are agreed for each order.
