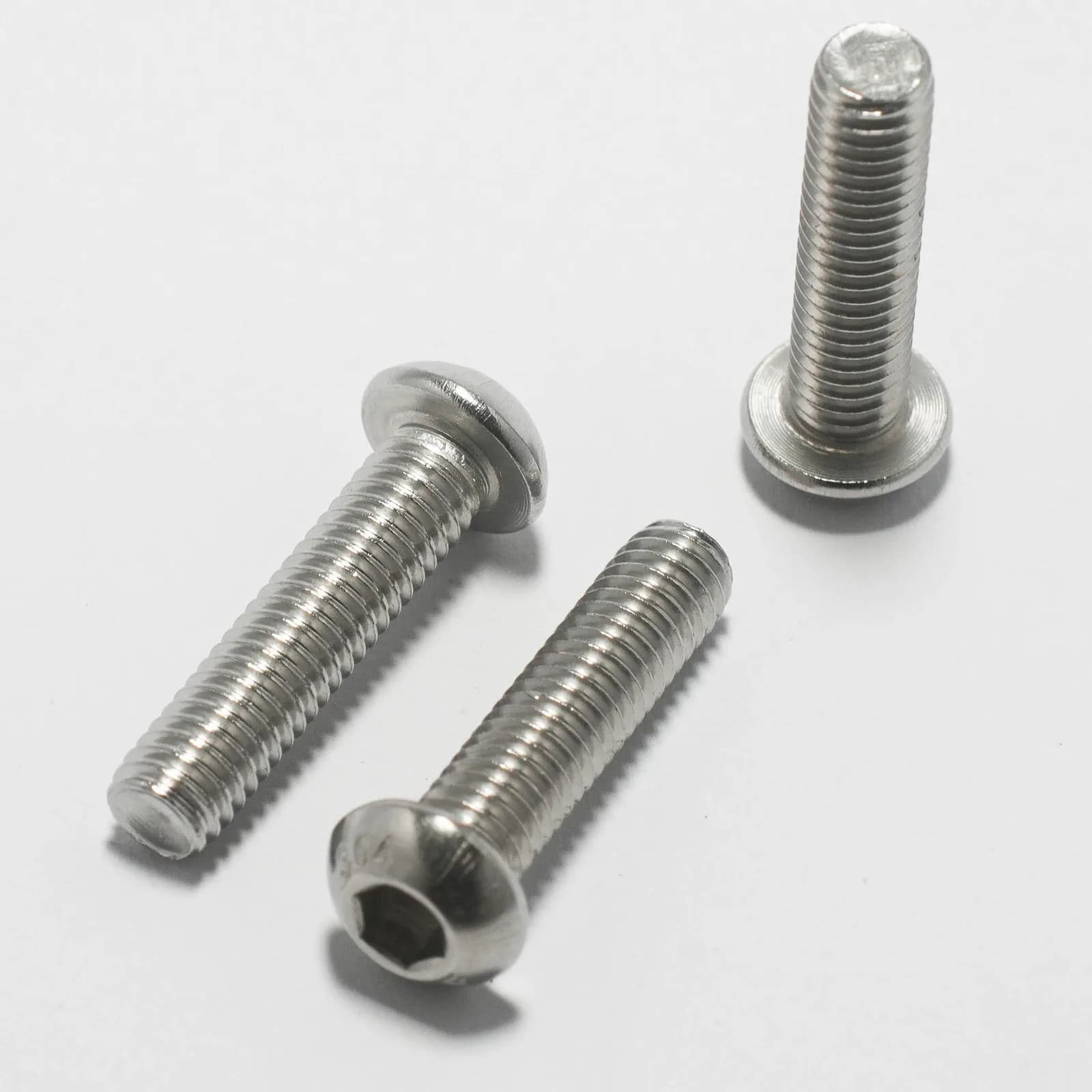

EnlargeRepresentative product photography. The supplied configuration is agreed with your order.
304 Stainless Steel Button Head Socket Screws
Source 304 stainless steel button head socket screws through Yulong in Shenzhen, China. The rounded button head gives this socket screw a distinct bearing profile. Check the head clearance and hex-drive size with the mating assembly.
- Listed material
- 304 Stainless steel
304 Stainless Steel Button Head Socket Screws quotation details
- Thread diameter and pitch
- under-head length
- head diameter and height
- hex socket size
- material and property class
Configuration, minimum quantity and lead time are reviewed with your inquiry.
304 Stainless Steel Button Head Socket Screws: sizes, material & specifications
Use these discrete specifications to identify your part. Length choices apply only to the thread size on the same row. Other sizes, drawing tolerances and order availability can be reviewed with your inquiry.
| Dimensions (mm) | Pitch | Material | Standard / drawing reference | Drawing dimensions (mm) |
|---|---|---|---|---|
| M6 × 70 mm | 1 mm | 304Property class: A2-70 | ISO 7380-1:2011 | Confirm on selected drawing |
Material and drawing selection
ISO 7380-1:2011 and A2-70 apply to the listed M6 × 70 reference. Check head clearance and thread coverage.
Drawing & sample review
Share a drawing, photograph or existing part reference. Any deviations from the listed product form can be reviewed before quotation.
Quality & packing
Inspection, documentation and packing requirements are agreed for each order.
Order arrangementsRelated product types
Discuss your requirements
A drawing, sample reference or parts list is enough to start the conversation. Dimensions and commercial terms are confirmed with your quotation.
