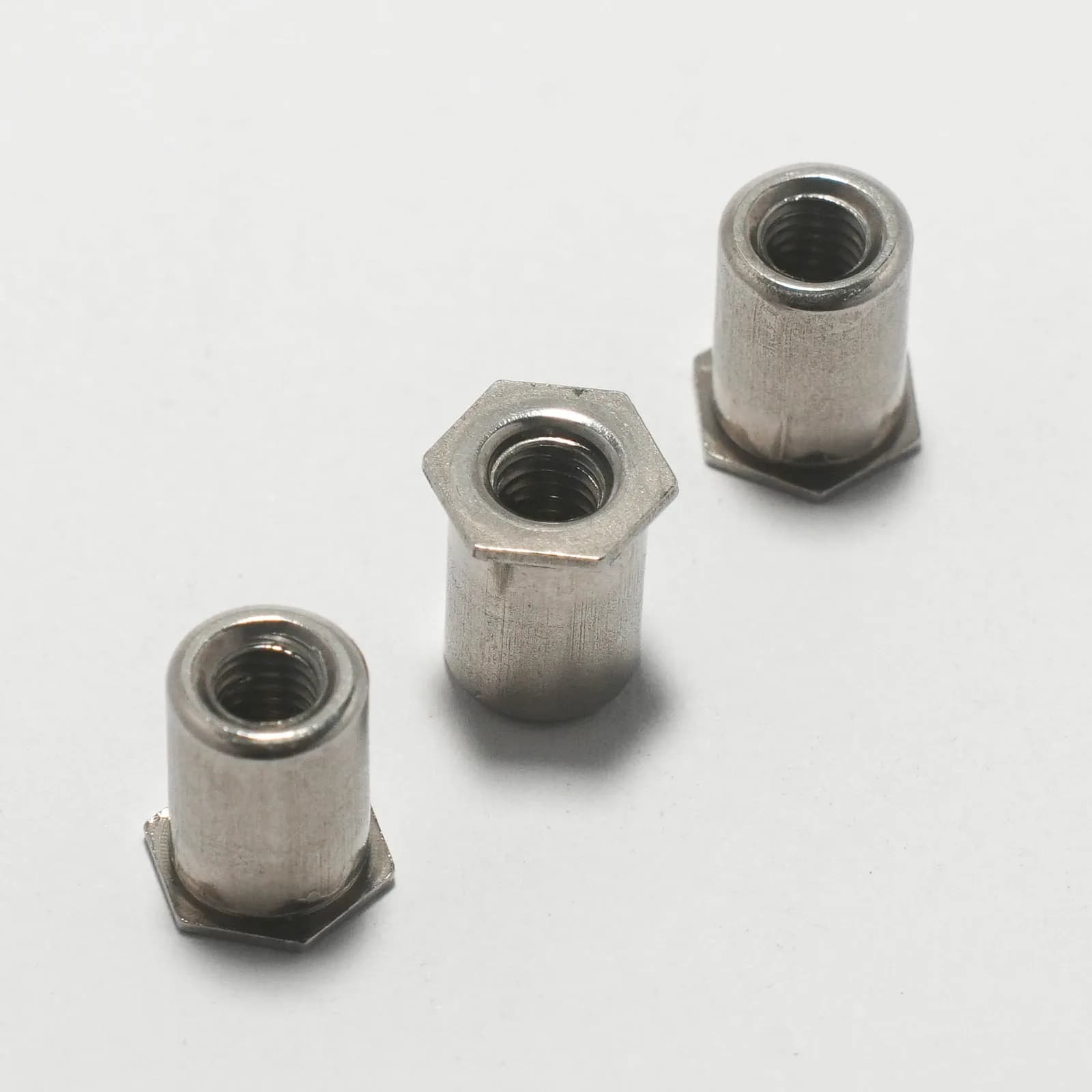

EnlargeRepresentative product photography. The supplied configuration is agreed with your order.
Stainless Steel Through-Hole Self-Clinching Standoffs
Source stainless steel through-hole self-clinching standoffs through Yulong in Shenzhen, China. Through-hole self-clinching standoffs provide a threaded spacing body. The mounting sheet and body geometry determine whether a selected part fits.
- Listed material
- Stainless steel
Stainless Steel Through-Hole Self-Clinching Standoffs quotation details
- Thread and pitch
- body length
- through-hole bore
- mounting hole
- minimum sheet thickness
- sheet hardness
- material
Configuration, minimum quantity and lead time are reviewed with your inquiry.
Stainless Steel Through-Hole Self-Clinching Standoffs: sizes, material & specifications
Use these discrete specifications to identify your part. Length choices apply only to the thread size on the same row. Other sizes, drawing tolerances and order availability can be reviewed with your inquiry.
| Dimensions (mm) | Pitch | Material | Standard / drawing reference | Drawing dimensions (mm) |
|---|---|---|---|---|
| M3 × 6 mm | 0.5 mm | 300 Series Stainless Steel | Drawing-specific | Sheet hole 4.22; H nominal4.8 mm |
Material and drawing selection
The M3 × 6 through-hole reference uses 300-series stainless steel. Mounting-hole reference is 4.22 mm and nominal hex dimension is 4.8 mm. Confirm the mounting sheet and selected drawing.
Drawing & sample review
Share a drawing, photograph or existing part reference. Any deviations from the listed product form can be reviewed before quotation.
Quality & packing
Inspection, documentation and packing requirements are agreed for each order.
Order arrangementsRelated product types
Discuss your requirements
A drawing, sample reference or parts list is enough to start the conversation. Dimensions and commercial terms are confirmed with your quotation.
