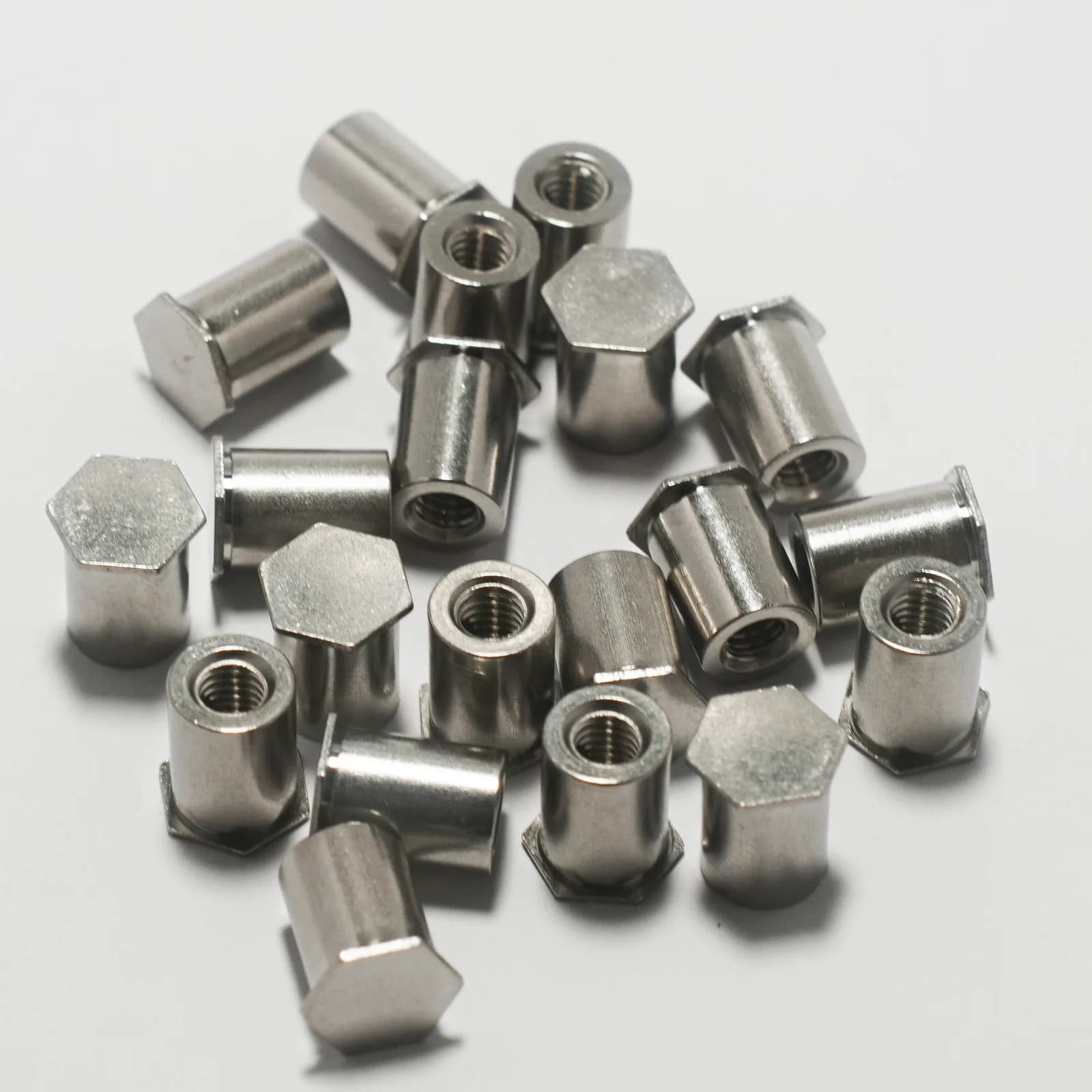

EnlargeRepresentative product photography. The supplied configuration is agreed with your order.
Stainless Steel Blind-Hole Self-Clinching Standoffs
Source stainless steel blind-hole self-clinching standoffs through Yulong in Shenzhen, China. Blind-hole self-clinching standoffs have limited usable thread depth. Specify that depth separately from the body length and mounting-hole dimensions.
- Listed material
- Stainless steel
Stainless Steel Blind-Hole Self-Clinching Standoffs quotation details
- Thread and pitch
- body length
- usable blind thread depth
- mounting hole
- sheet thickness and hardness
- material
Configuration, minimum quantity and lead time are reviewed with your inquiry.
Stainless Steel Blind-Hole Self-Clinching Standoffs: sizes, material & specifications
Use these discrete specifications to identify your part. Length choices apply only to the thread size on the same row. Other sizes, drawing tolerances and order availability can be reviewed with your inquiry.
| Dimensions (mm) | Pitch | Material | Standard / drawing reference | Drawing dimensions (mm) |
|---|---|---|---|---|
| M3 × 6 mm | 0.5 mm | 300 Series Stainless Steel | Drawing-specific | Sheet hole 4.22; C max4.20; F min3.2; H4.8 mm |
| M3 × 8, 10 mm | 0.5 mm | 300 Series Stainless Steel | Drawing-specific | Sheet hole 4.22; C max4.20; F min4; H4.8 mm |
| M3 × 12 mm | 0.5 mm | 300 Series Stainless Steel | Drawing-specific | Sheet hole 4.22; C max4.20; F min5; H4.8 mm |
| M3 × 14, 16 mm | 0.5 mm | 300 Series Stainless Steel | Drawing-specific | Sheet hole 4.22; C max4.20; F min6.5; H4.8 mm |
| M3 × 18, 20, 22, 25 mm | 0.5 mm | 300 Series Stainless Steel | Drawing-specific | Sheet hole 4.22; C max4.20; F min9.5; H4.8 mm |
Material and drawing selection
Blind-hole standoff references use 300-series stainless steel, not a confirmed 304 grade. Body length and usable internal thread depth are separate. Confirm mounting-hole size, sheet thickness and hardness.
Drawing & sample review
Share a drawing, photograph or existing part reference. Any deviations from the listed product form can be reviewed before quotation.
Quality & packing
Inspection, documentation and packing requirements are agreed for each order.
Order arrangementsRelated product types
Discuss your requirements
A drawing, sample reference or parts list is enough to start the conversation. Dimensions and commercial terms are confirmed with your quotation.
