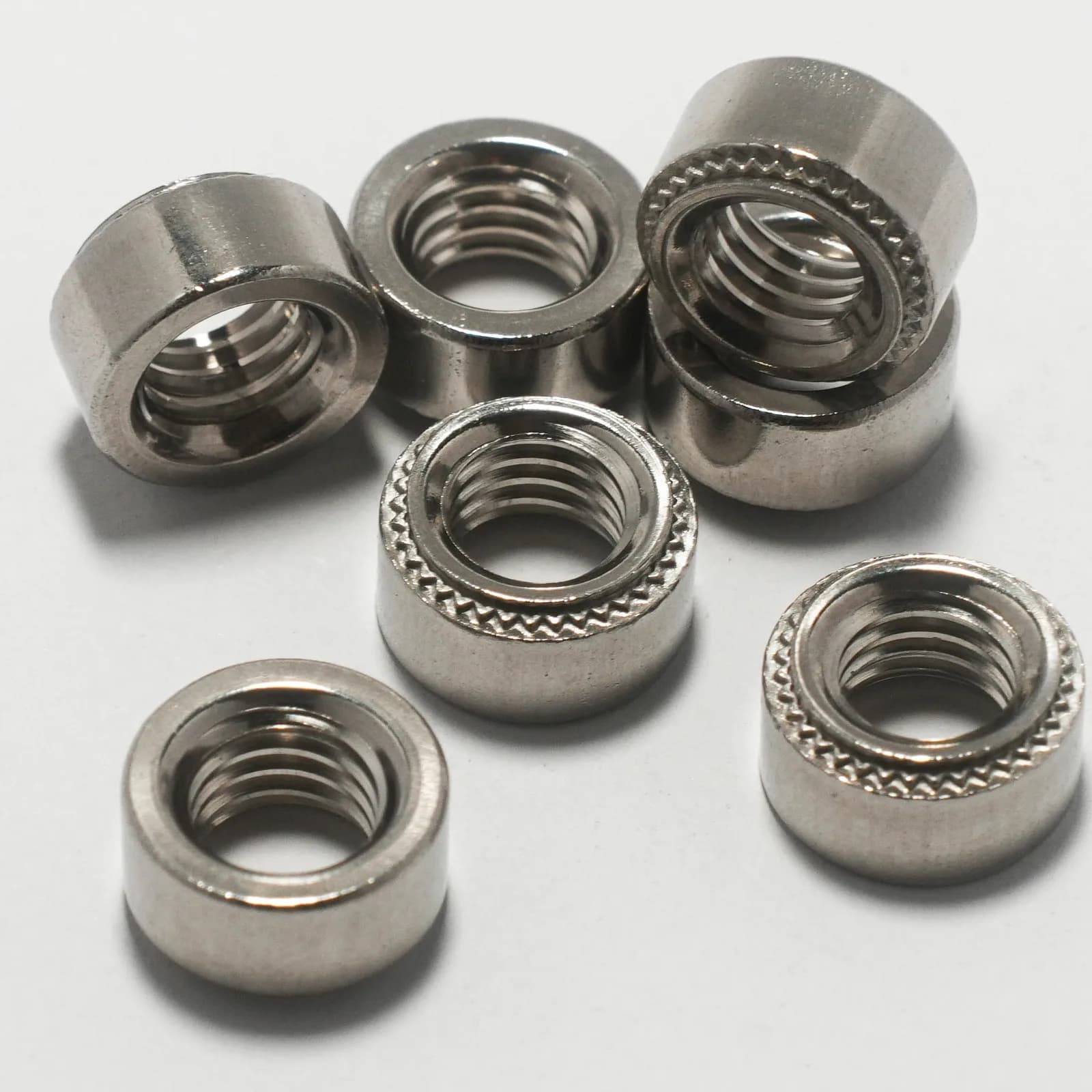

EnlargeRepresentative product photography. The supplied configuration is agreed with your order.
Stainless Steel Self-Clinching Nuts
Source stainless steel self-clinching nuts through Yulong in Shenzhen, China. Self-clinching nuts have a defined shank and sheet-hole interface. A shank code is a selection code, not the nut length.
- Listed material
- Stainless steel
Stainless Steel Self-Clinching Nuts quotation details
- Thread and pitch
- shank code
- minimum sheet thickness
- mounting hole
- nut dimensions
- sheet hardness
- material
Configuration, minimum quantity and lead time are reviewed with your inquiry.
Stainless Steel Self-Clinching Nuts: sizes, material & specifications
Use these discrete specifications to identify your part. Length choices apply only to the thread size on the same row. Other sizes, drawing tolerances and order availability can be reviewed with your inquiry.
| Thread size | Pitch | Material | Standard / drawing reference | Drawing dimensions (mm) |
|---|---|---|---|---|
| M3 | 0.5 mm | 300 Series Stainless Steel | Drawing-specific | A max0.77; E6.35±0.25; T1.5±0.25; Sheet hole 4.22 mm |
Material and drawing selection
For the M3 reference, shank code 0 is not a length. Thread is 6H per ASME B1.13M; this is a thread standard, not a whole-product standard. Material is 300-series stainless steel. Confirm sheet hardness and mounting-hole dimensions.
Drawing & sample review
Share a drawing, photograph or existing part reference. Any deviations from the listed product form can be reviewed before quotation.
Quality & packing
Inspection, documentation and packing requirements are agreed for each order.
Order arrangementsRelated product types
Discuss your requirements
A drawing, sample reference or parts list is enough to start the conversation. Dimensions and commercial terms are confirmed with your quotation.
