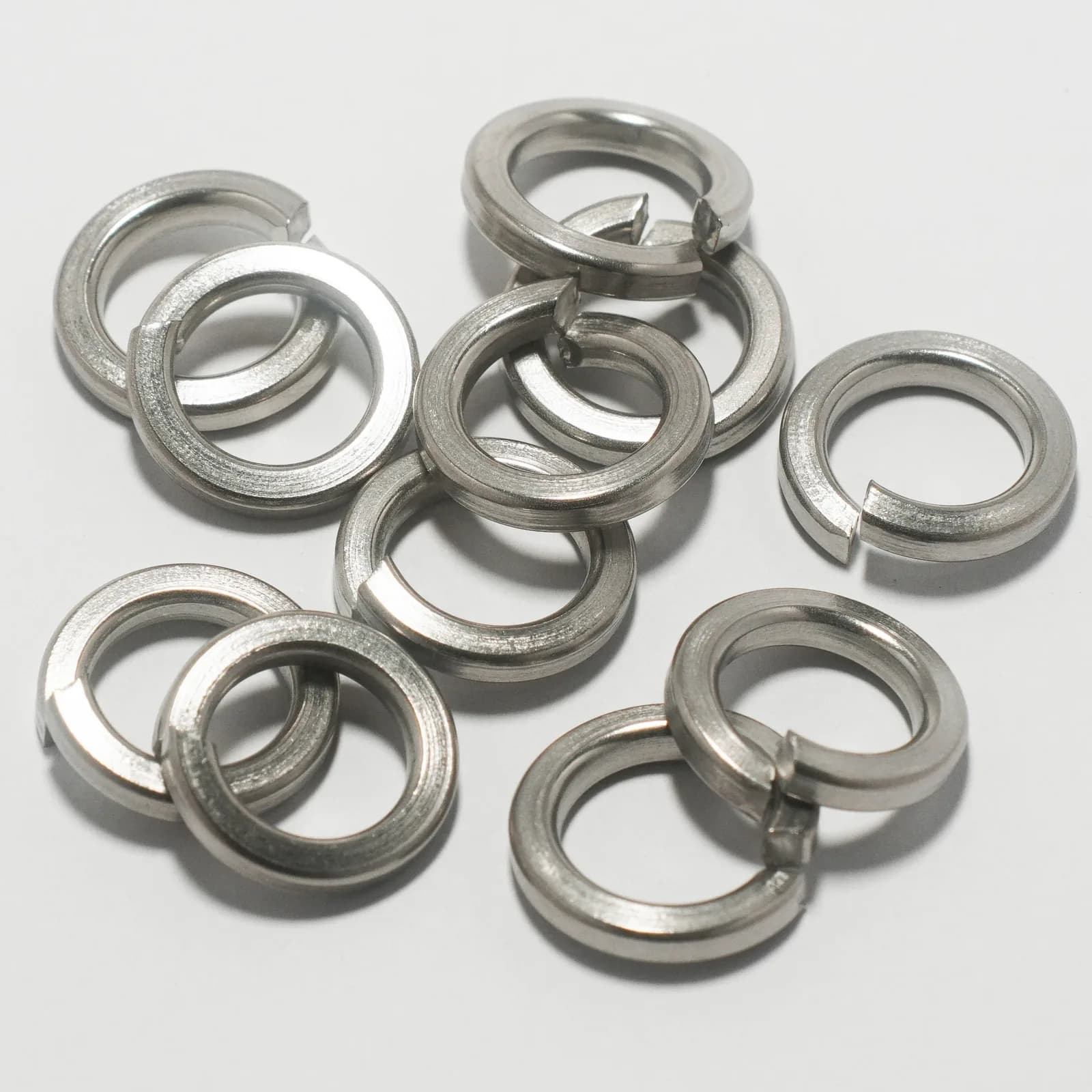

EnlargeRepresentative product photography. The supplied configuration is agreed with your order.
304 Stainless Steel Spring Washers
Source 304 stainless steel spring washers through Yulong in Shenzhen, China. A split spring washer has a section thickness and a free height. These dimensions and the material need confirmation for the selected joint.
- Listed material
- 304 Stainless steel
304 Stainless Steel Spring Washers quotation details
- Nominal mating bolt size
- bore
- outer diameter
- thickness
- free height
- washer form
- material and drawing
Configuration, minimum quantity and lead time are reviewed with your inquiry.
304 Stainless Steel Spring Washers: sizes, material & specifications
Use these discrete specifications to identify your part. Length choices apply only to the thread size on the same row. Other sizes, drawing tolerances and order availability can be reviewed with your inquiry.
| Mating bolt size | Pitch | Material | Standard / drawing reference | Drawing dimensions (mm) |
|---|---|---|---|---|
| M8 | Confirm on drawing | A2 (AISI 304) | DIN 127 | Section thickness=2 mm |
| M10 | Confirm on drawing | A2 (AISI 304) | DIN 127 | Section thickness=2.2 mm |
| M12 | Confirm on drawing | A2 (AISI 304) | DIN 127 | Section thickness=2.5 mm |
Material and drawing selection
M sizes identify the mating bolt. Confirm bore, section thickness and free height against the current drawing; product-page and older catalogue dimensions can differ.
Drawing & sample review
Share a drawing, photograph or existing part reference. Any deviations from the listed product form can be reviewed before quotation.
Quality & packing
Inspection, documentation and packing requirements are agreed for each order.
Order arrangementsRelated product types
Discuss your requirements
A drawing, sample reference or parts list is enough to start the conversation. Dimensions and commercial terms are confirmed with your quotation.
