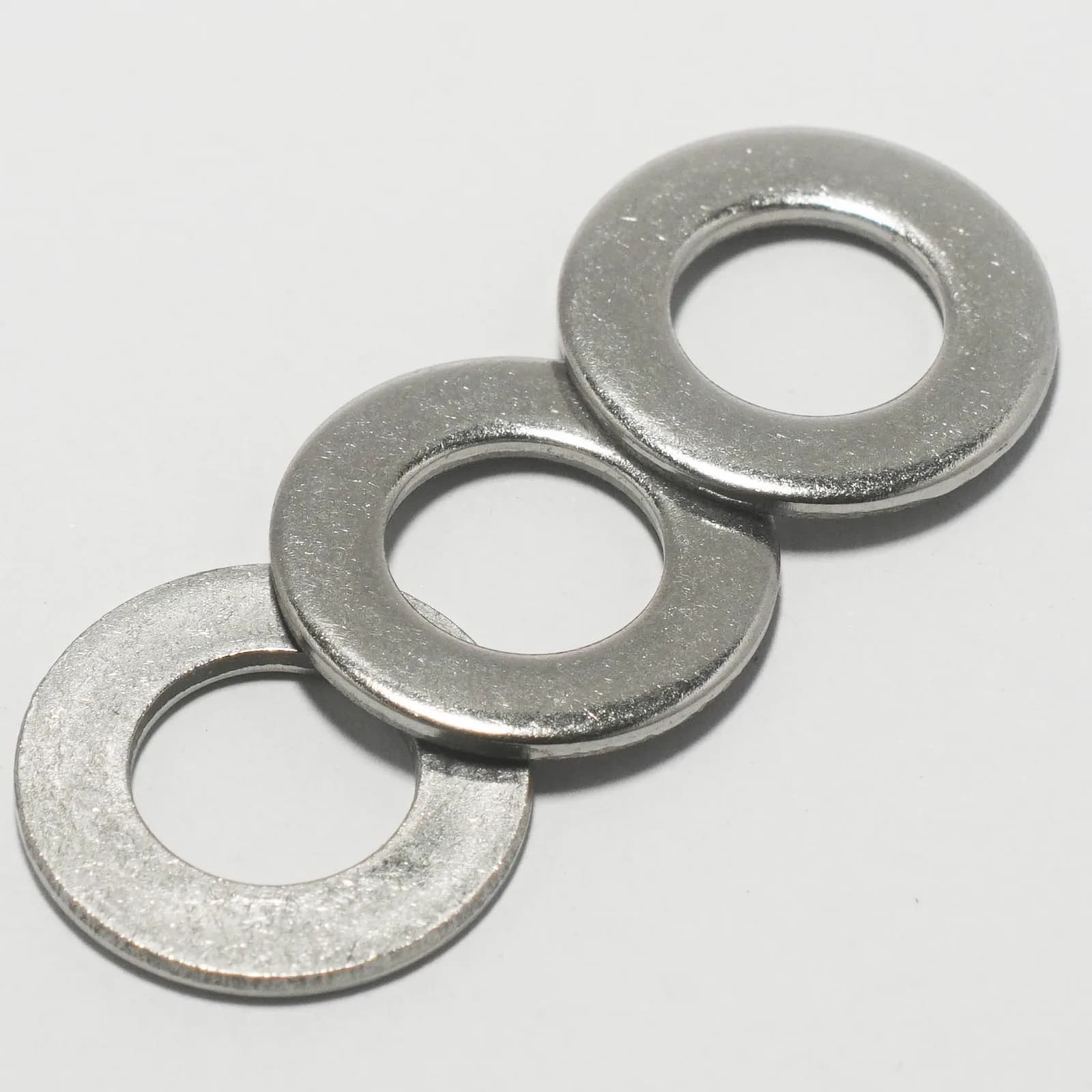

EnlargeRepresentative product photography. The supplied configuration is agreed with your order.
304 Stainless Steel Flat Washers
Source 304 stainless steel flat washers through Yulong in Shenzhen, China. A flat washer is defined by its bore, outside diameter and thickness. The nominal mating bolt size does not equal the actual bore.
- Listed material
- 304 Stainless steel
304 Stainless Steel Flat Washers quotation details
- Nominal mating bolt size
- actual inner diameter
- outer diameter
- thickness
- material
- hardness class if required
Configuration, minimum quantity and lead time are reviewed with your inquiry.
304 Stainless Steel Flat Washers: sizes, material & specifications
Use these discrete specifications to identify your part. Length choices apply only to the thread size on the same row. Other sizes, drawing tolerances and order availability can be reviewed with your inquiry.
| Mating bolt size | Pitch | Material | Standard / drawing reference | Drawing dimensions (mm) |
|---|---|---|---|---|
| M4 | Confirm on drawing | A2 (AISI 304) | DIN 125 | Bore d1=4.3; Outside d2=9; Thickness h=0.8 mm |
| M5 | Confirm on drawing | A2 (AISI 304) | DIN 125 | Bore d1=5.3; Outside d2=10; Thickness h=1 mm |
| M6 | Confirm on drawing | A2 (AISI 304) | DIN 125 | Bore d1=6.4; Outside d2=12; Thickness h=1.6 mm |
| M8 | Confirm on drawing | A2 (AISI 304) | DIN 125 | Bore d1=8.4; Outside d2=16; Thickness h=1.6 mm |
| M10 | Confirm on drawing | A2 (AISI 304) | DIN 125 | Bore d1=10.5; Outside d2=20; Thickness h=2 mm |
| M12 | Confirm on drawing | A2 (AISI 304) | DIN 125 | Bore d1=13; Outside d2=24; Thickness h=2.5 mm |
| M14 | Confirm on drawing | A2 (AISI 304) | DIN 125 | Bore d1=15; Outside d2=28; Thickness h=2.5 mm |
| M16 | Confirm on drawing | A2 (AISI 304) | DIN 125 | Bore d1=17; Outside d2=30; Thickness h=3 mm |
| M18 | Confirm on drawing | A2 (AISI 304) | DIN 125 | Bore d1=19; Outside d2=34; Thickness h=3 mm |
| M20 | Confirm on drawing | A2 (AISI 304) | DIN 125 | Bore d1=21; Outside d2=37; Thickness h=3 mm |
| M22 | Confirm on drawing | A2 (AISI 304) | DIN 125 | Bore d1=23; Outside d2=39; Thickness h=3 mm |
| M24 | Confirm on drawing | A2 (AISI 304) | DIN 125 | Bore d1=25; Outside d2=44; Thickness h=4 mm |
Material and drawing selection
M sizes identify the mating bolt, not the washer bore. Confirm actual inner diameter, outside diameter and thickness on the selected drawing.
Drawing & sample review
Share a drawing, photograph or existing part reference. Any deviations from the listed product form can be reviewed before quotation.
Quality & packing
Inspection, documentation and packing requirements are agreed for each order.
