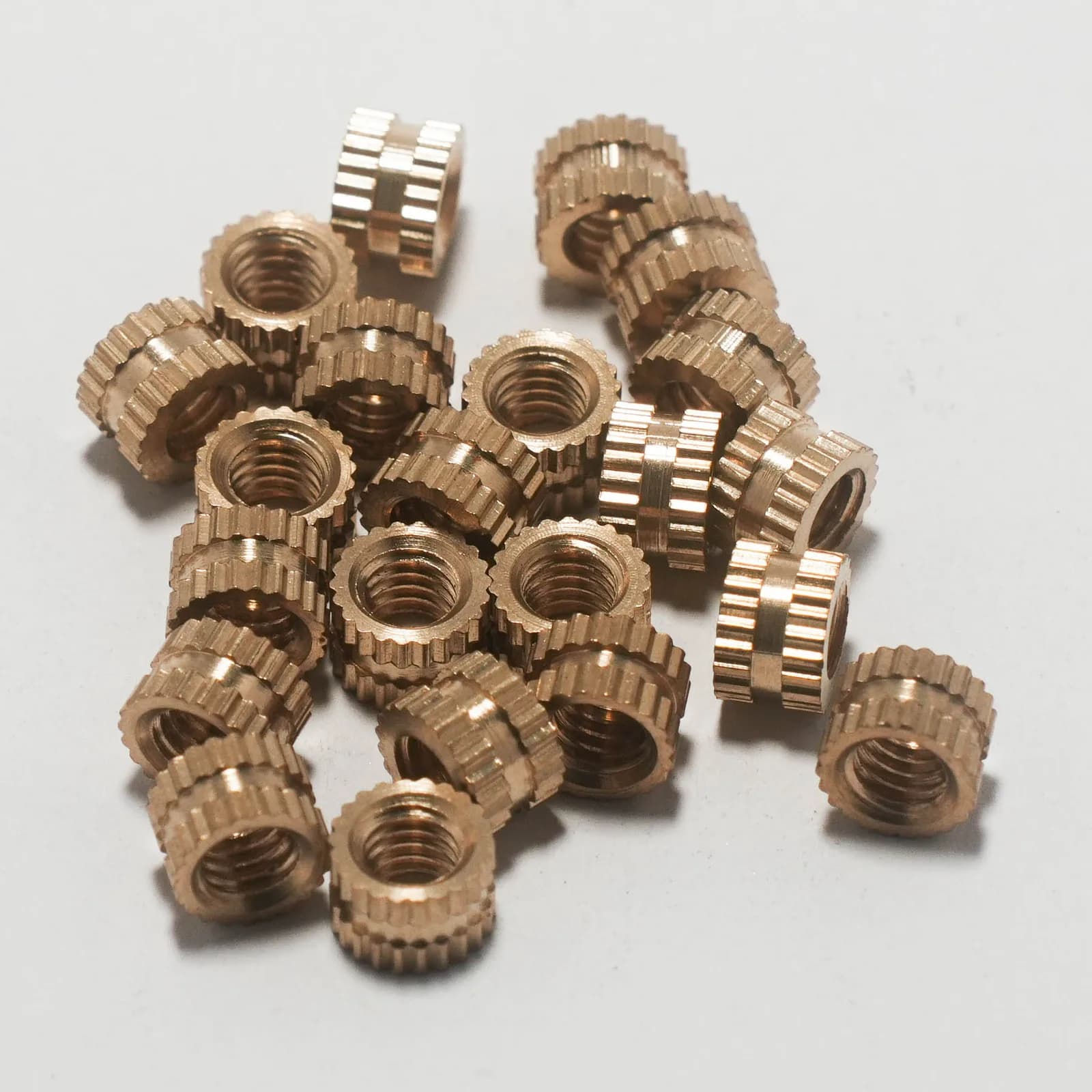

EnlargeRepresentative product photography. The supplied configuration is agreed with your order.
Brass Mould-In Inserts
Source brass mould-in inserts through Yulong in Shenzhen, China. Mould-in inserts are positioned before the plastic is moulded. Keep them separate from heat-installed and ultrasonic insert types.
- Listed material
- Brass
Brass Mould-In Inserts quotation details
- Thread and pitch
- overall body length
- outside dimensions
- knurl geometry
- blind or through thread
- moulding material
- brass alloy
Configuration, minimum quantity and lead time are reviewed with your inquiry.
Brass Mould-In Inserts: sizes, material & specifications
Use these discrete specifications to identify your part. Length choices apply only to the thread size on the same row. Other sizes, drawing tolerances and order availability can be reviewed with your inquiry.
| Dimensions (mm) | Pitch | Material | Standard / drawing reference | Drawing dimensions (mm) |
|---|---|---|---|---|
| M3; overall A 7.13 mm | 0.5 mm | Free-machining, Leaded Brass | Drawing-specific | A=7.13±0.13; H min3.21; E nominal4.78; C4.34±0.13 mm; Length code 6 |
Material and drawing selection
The M3 mould-in insert reference uses free-machining leaded brass. Overall dimension A is 7.13 ± 0.13 mm; length code 6 does not mean a 6 mm overall length. Thread is 6H per ASME B1.13M. Confirm material restrictions and mould geometry.
Drawing & sample review
Share a drawing, photograph or existing part reference. Any deviations from the listed product form can be reviewed before quotation.
Quality & packing
Inspection, documentation and packing requirements are agreed for each order.
