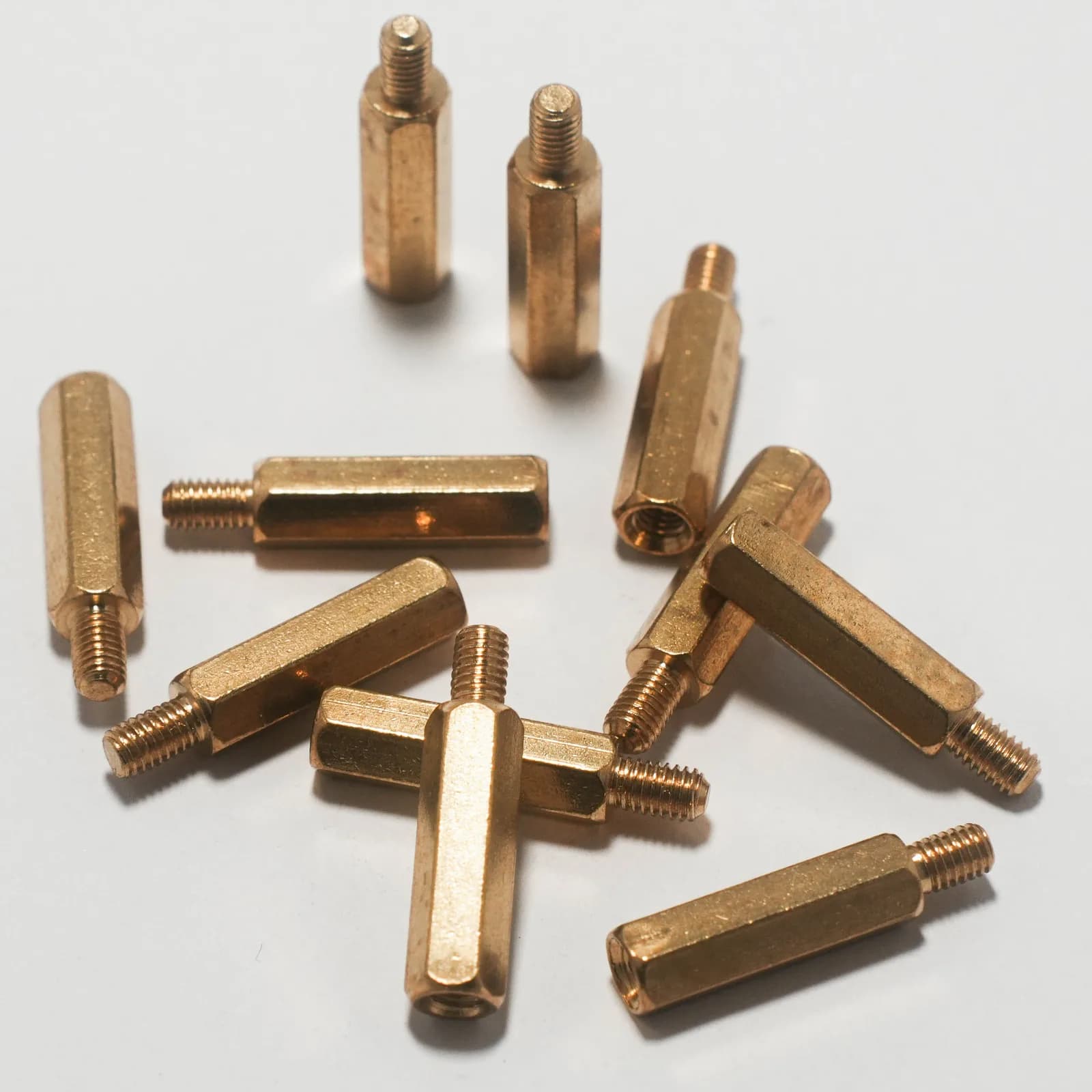

Brass Hex Male-Female Standoffs

Source brass hex male-female standoffs through Yulong in Shenzhen, China. A male-female standoff has one external and one internal thread. Body length, external thread length and internal thread depth are separate dimensions.

Listed material: Brass

Brass Hex Male-Female Standoffs quotation details

Both thread sizes and pitches
body length
external thread length
across flats
internal thread depth
brass alloy

Configuration, minimum quantity and lead time are reviewed with your inquiry.

Request a quote Custom requirements

Brass Hex Male-Female Standoffs: sizes, material & specifications

Use these discrete specifications to identify your part. Length choices apply only to the thread size on the same row. Other sizes, drawing tolerances and order availability can be reviewed with your inquiry.

Brass Hex Male-Female Standoffs size combinations and material references. Dimensions are in millimetres.
Dimensions (mm)	Pitch	Material	Standard / drawing reference	Drawing dimensions (mm)
M3 × 4, 5, 6, 8, 10, 12, 14, 16 mm	0.5 mm	Brass	Drawing-specific (TBJ21 reference)	V=6; S max/min=5.1/4.6
M3 × 5, 6, 8, 10, 12, 14, 16, 18, 20, 22, 25, 30, 35, 40, 45, 50, 55, 60 mm	0.5 mm	铜	Drawing-specific (TBJ21 reference)	Confirm on selected drawing
M4 × 6, 8, 10, 12, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60 mm	0.7 mm	铜	Drawing-specific (TBJ21 reference)	Confirm on selected drawing
M4 × 6, 8, 10, 12, 14, 16 mm	0.7 mm	Brass	Drawing-specific (TBJ21 reference)	V=6; S max/min=6.1/5.9

Material and drawing selection

Lengths refer to the hexagonal body. Confirm the external thread length, female thread depth and across-flats dimension from the drawing. The brass alloy is quotation-specific.
