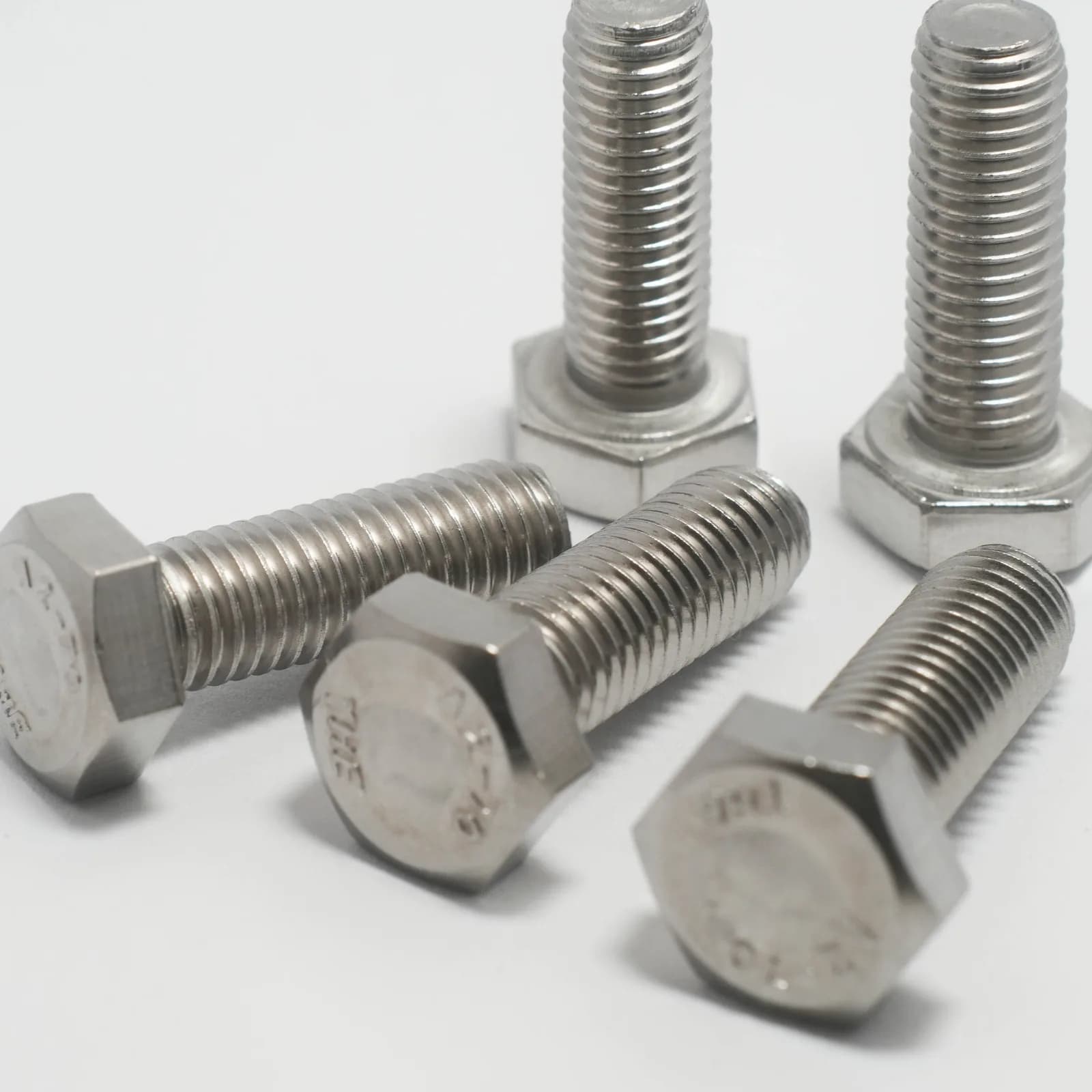

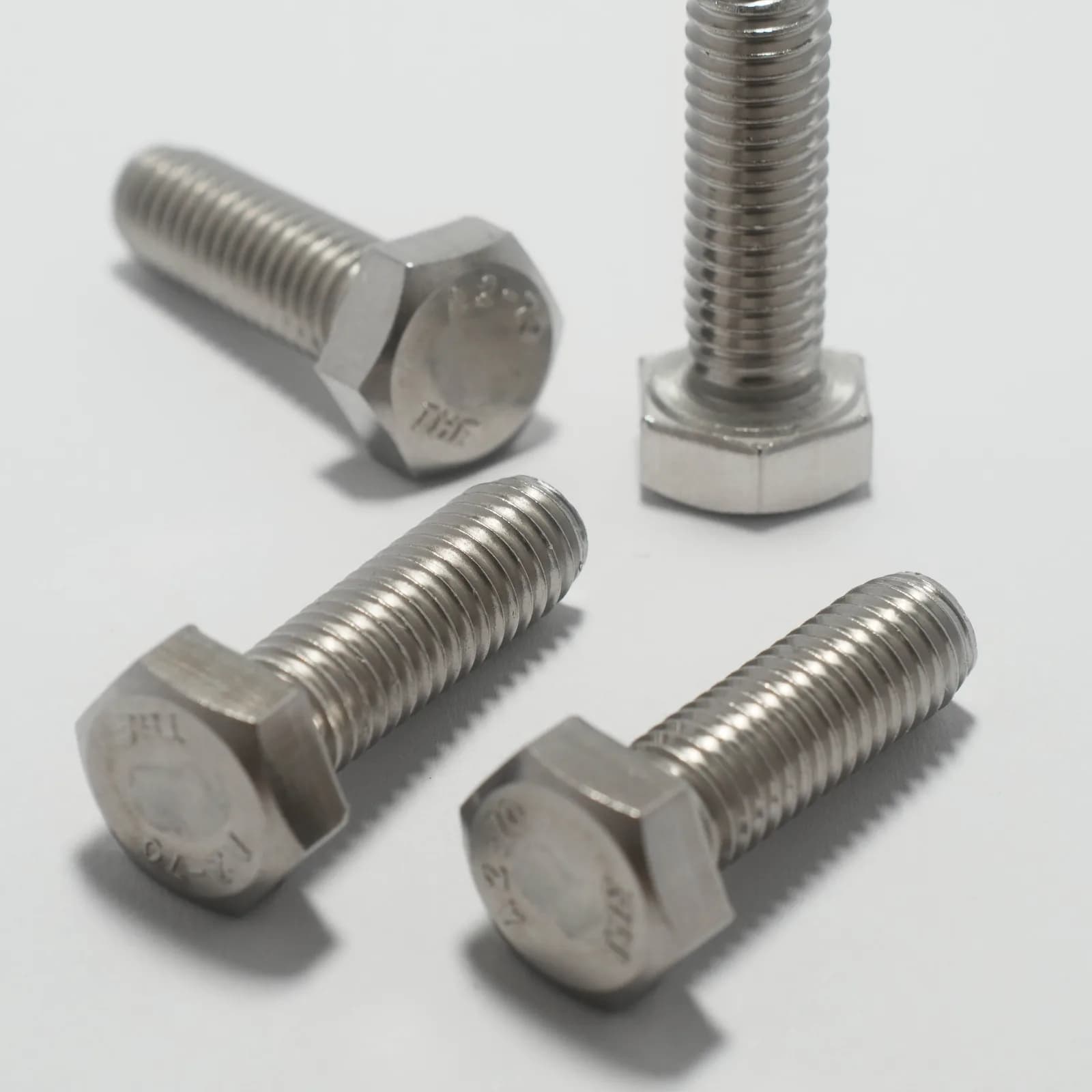

304 Stainless Steel Hex Head Bolts, product photograph 1 Sample view 1

Enlarge

Sample view 11 / 3

Representative product photography. The supplied configuration is agreed with your order.

304 Stainless Steel Hex Head Bolts

Source 304 stainless steel hex head bolts through Yulong in Shenzhen, China. Hex-head bolts can differ in thread length and head dimensions. Identify whether the joint needs a fully threaded or partially threaded bolt.

Listed material: 304 Stainless steel

304 Stainless Steel Hex Head Bolts quotation details

Thread diameter and pitch
under-head length
full or partial thread
head across flats
material and property class
quantity

Configuration, minimum quantity and lead time are reviewed with your inquiry.

Request a quote Custom requirements

304 Stainless Steel Hex Head Bolts: sizes, material & specifications

Use these discrete specifications to identify your part. Length choices apply only to the thread size on the same row. Other sizes, drawing tolerances and order availability can be reviewed with your inquiry.

304 Stainless Steel Hex Head Bolts size combinations and material references. Dimensions are in millimetres.
Dimensions (mm)	Pitch	Material	Standard / drawing reference	Drawing dimensions (mm)
M2 × 3, 4, 5, 6, 8, 10, 12, 14, 16, 18, 20 mm	0.4 mm	304	DIN 933	Confirm on selected drawing
M2.5 × 3, 4, 5, 6, 8, 10 mm	0.45 mm	304	DIN 933	Confirm on selected drawing
M3 × 6, 8, 10, 12 mm	0.5 mm	304	DIN 933	Confirm on selected drawing
M6 × 20 mm	1 mm	304Property class: A2-70	DIN 933	Confirm on selected drawing
M6 × 20 mm	0.75 mm	304Property class: A2-70	DIN 933	Confirm on selected drawing

Material and drawing selection

DIN 933 full-thread references are listed below. Confirm the selected drawing and property class; adhesive-treated versions are separate configurations.

Send your size and drawing for a quotation
