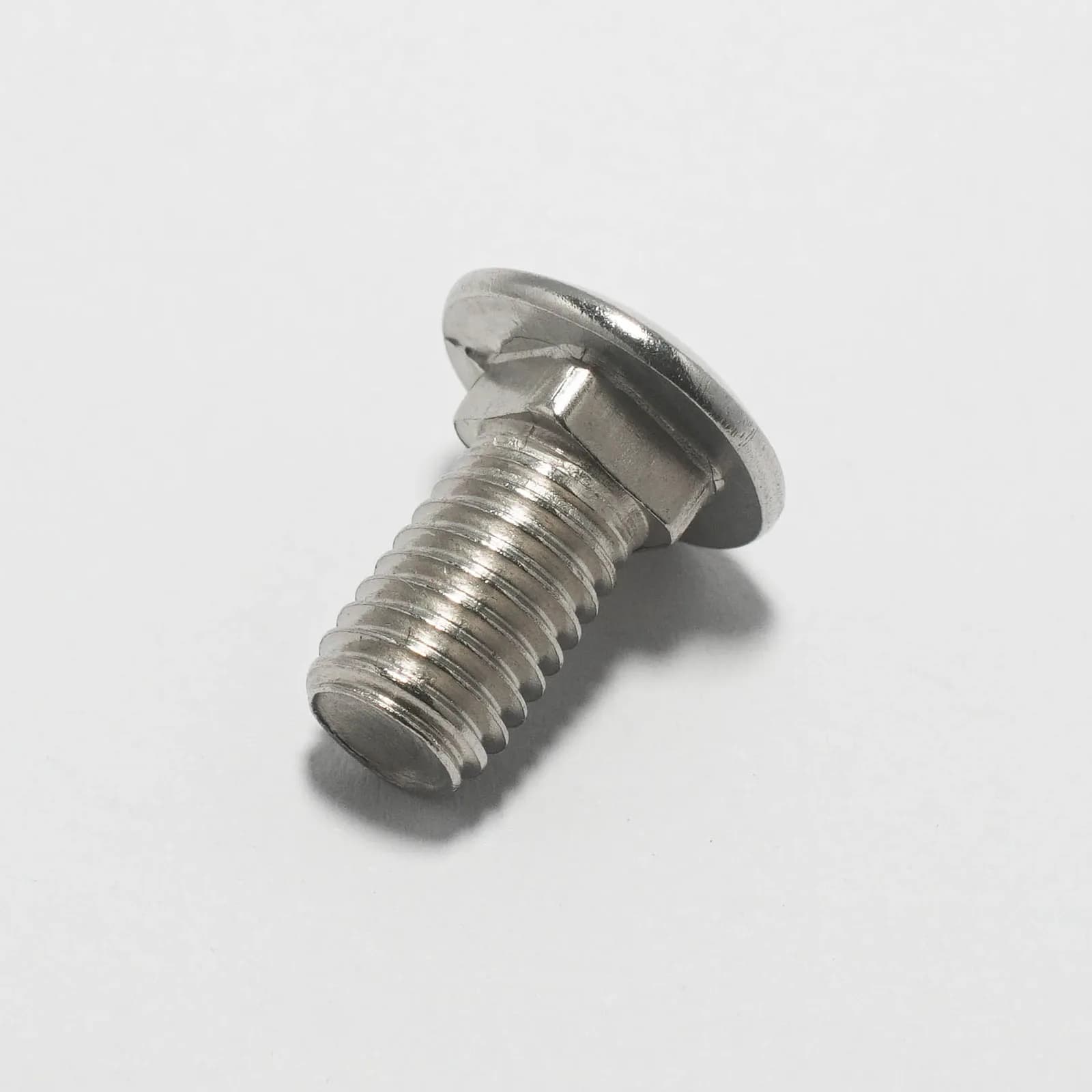

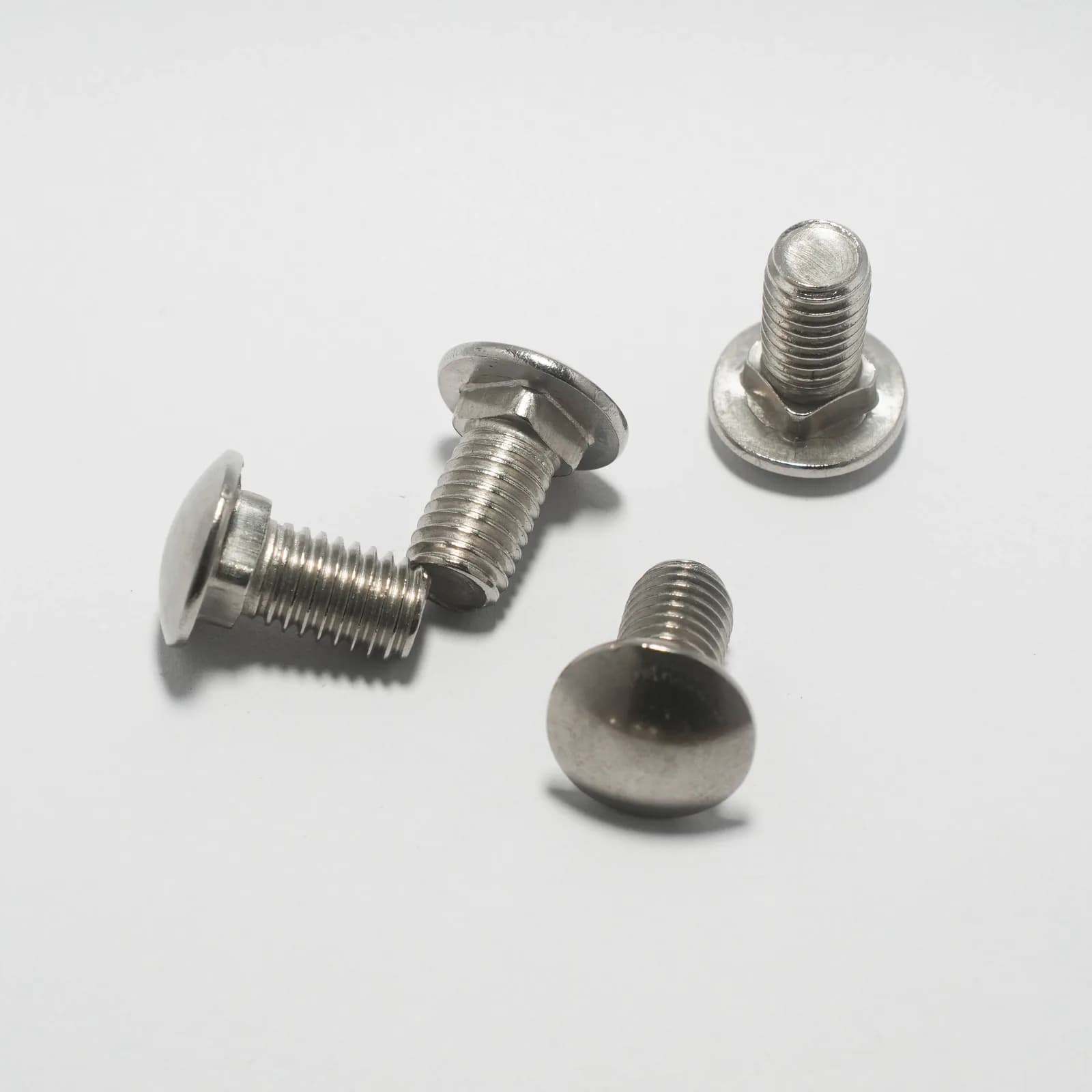

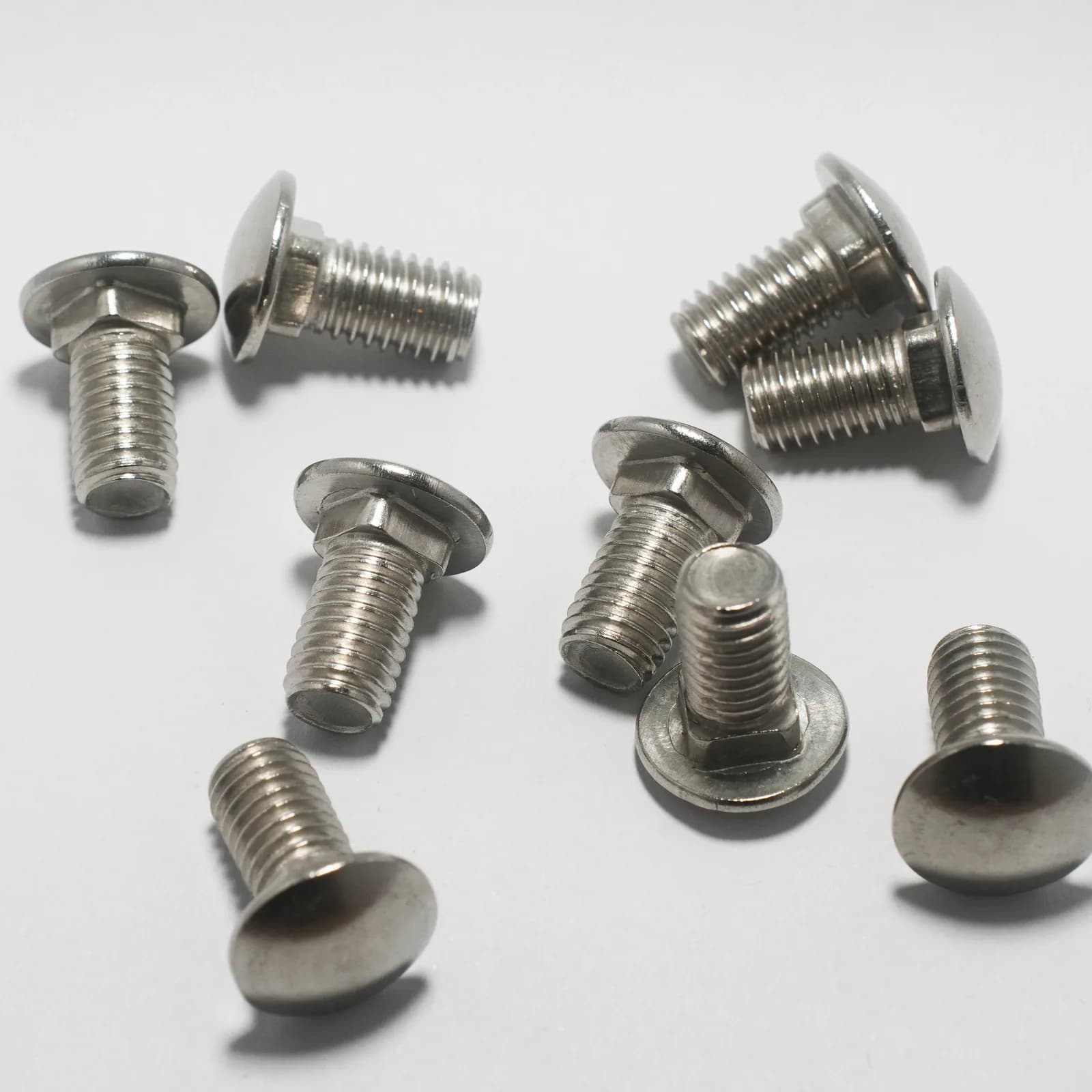

EnlargeRepresentative product photography. The supplied configuration is agreed with your order.
304 Stainless Steel Carriage Bolts
Source 304 stainless steel carriage bolts through Yulong in Shenzhen, China. The square neck and rounded head distinguish carriage bolts from ordinary hex bolts. Check the seating geometry against the mating component.
- Listed material
- 304 Stainless steel
304 Stainless Steel Carriage Bolts quotation details
- Thread diameter and pitch
- under-head length
- thread length
- square-neck width and height
- head diameter
- quantity
Configuration, minimum quantity and lead time are reviewed with your inquiry.
304 Stainless Steel Carriage Bolts: sizes, material & specifications
Use these discrete specifications to identify your part. Length choices apply only to the thread size on the same row. Other sizes, drawing tolerances and order availability can be reviewed with your inquiry.
| Dimensions (mm) | Pitch | Material | Standard / drawing reference | Drawing dimensions (mm) |
|---|---|---|---|---|
| M8 × 16 mm | Confirm on drawing | A2 (AISI 304) | DIN 603 | Head diameter 20 mm |
Material and drawing selection
The listed DIN 603 reference is M8 × 16. Head diameter 20 mm and head height 4.5 mm are drawing references; check the square neck and mating hole.
Drawing & sample review
Share a drawing, photograph or existing part reference. Any deviations from the listed product form can be reviewed before quotation.
Quality & packing
Inspection, documentation and packing requirements are agreed for each order.
