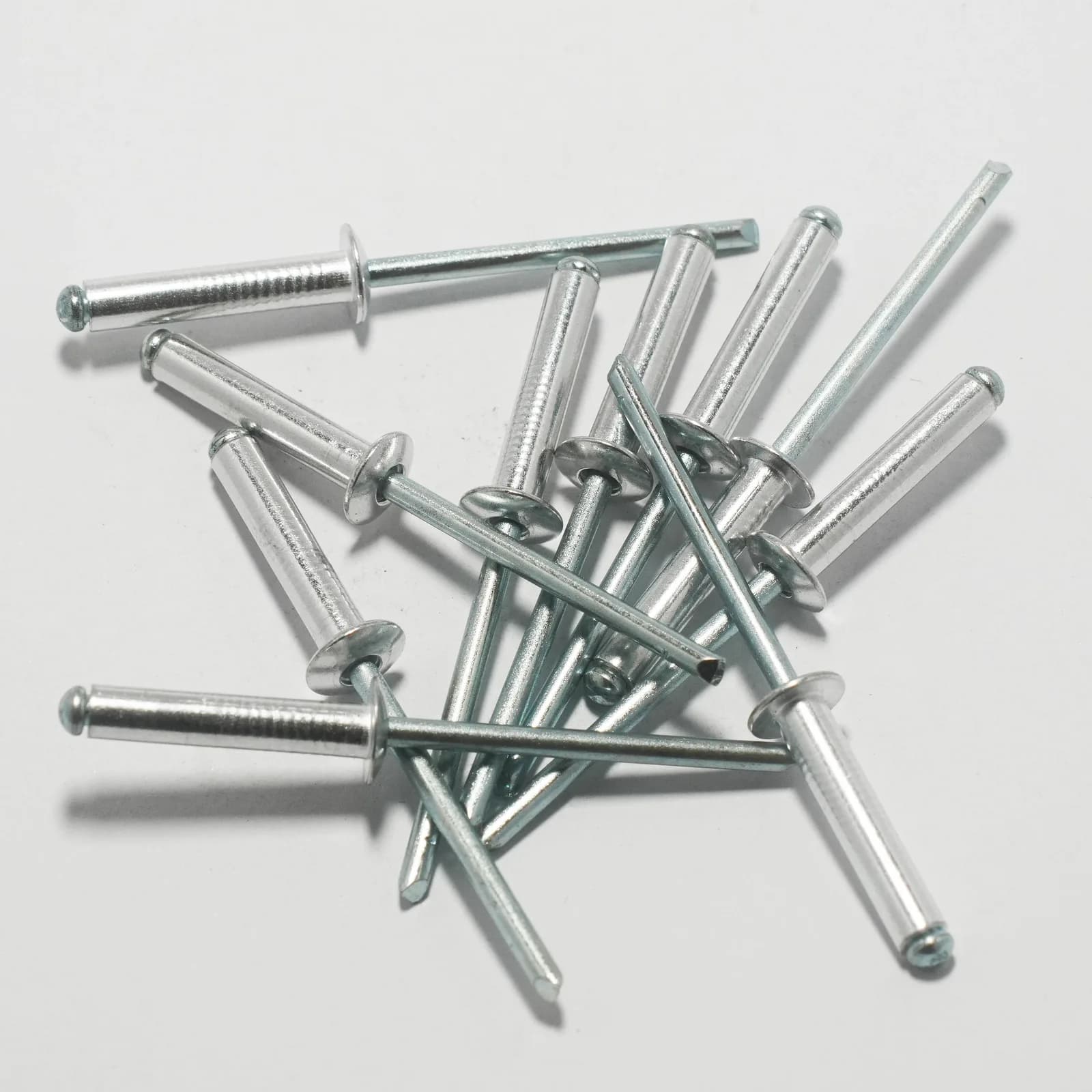

EnlargeRepresentative product photography. The supplied configuration is agreed with your order.
Stainless Steel Dome Head Blind Rivets
Source stainless steel dome head blind rivets through Yulong in Shenzhen, China. A dome-head blind rivet is selected with the joint grip range. The body and mandrel may have different materials and require separate confirmation.
- Listed material
- Stainless steel
Stainless Steel Dome Head Blind Rivets quotation details
- Rivet body diameter and length
- grip range
- hole size
- head diameter
- body and mandrel materials
- open or sealed end
Configuration, minimum quantity and lead time are reviewed with your inquiry.
Stainless Steel Dome Head Blind Rivets: sizes, material & specifications
Use these discrete specifications to identify your part. Length choices apply only to the thread size on the same row. Other sizes, drawing tolerances and order availability can be reviewed with your inquiry.
| Dimensions (mm) | Pitch | Material | Standard / drawing reference | Drawing dimensions (mm) |
|---|---|---|---|---|
| Ø4.8 × 10 mm | Confirm on drawing | Body: A2 / EN1.4567; mandrel: A2 | Drawing-specific | Hole diameter 4.90; Head diameter 9.50 |
Material and drawing selection
The Ø4.8 × 10 reference uses an A2 / EN 1.4567 rivet body and A2 mandrel. EN 1.4567 is not labelled 304 here. Hole reference is 4.90 mm, head diameter 9.50 mm and mandrel diameter 3.20 mm; specify the joint grip range.
Drawing & sample review
Share a drawing, photograph or existing part reference. Any deviations from the listed product form can be reviewed before quotation.
Quality & packing
Inspection, documentation and packing requirements are agreed for each order.
Order arrangementsDiscuss your requirements
A drawing, sample reference or parts list is enough to start the conversation. Dimensions and commercial terms are confirmed with your quotation.
