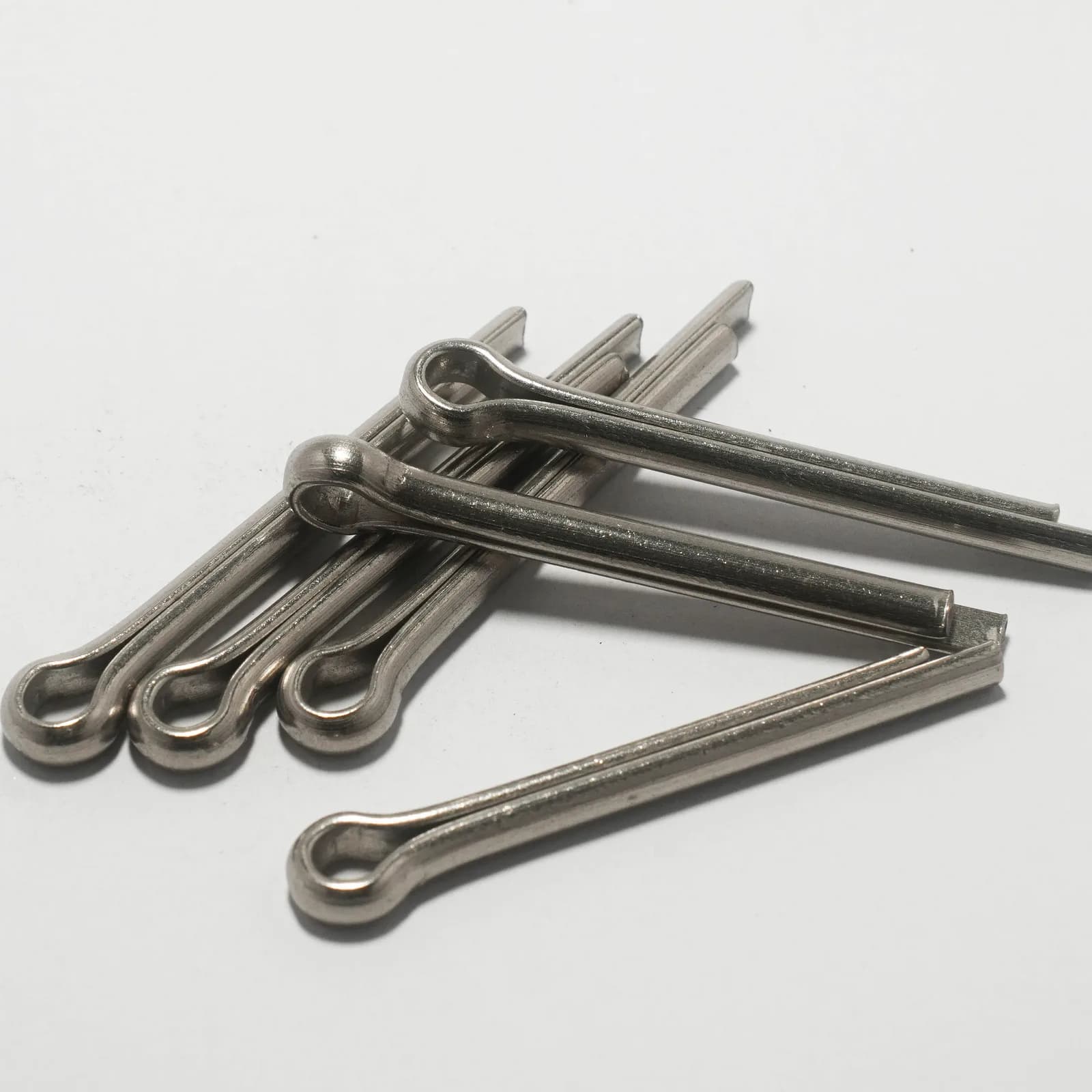

EnlargeRepresentative product photography. The supplied configuration is agreed with your order.
304 Stainless Steel Cotter Pins
Source 304 stainless steel cotter pins through Yulong in Shenzhen, China. A cotter pin is specified with its nominal diameter and drawing-defined length. The pin has no machine thread.
- Listed material
- 304 Stainless steel
304 Stainless Steel Cotter Pins quotation details
- Nominal pin diameter
- length definition
- mating hole
- head geometry
- material
- quantity
Configuration, minimum quantity and lead time are reviewed with your inquiry.
304 Stainless Steel Cotter Pins: sizes, material & specifications
Use these discrete specifications to identify your part. Length choices apply only to the thread size on the same row. Other sizes, drawing tolerances and order availability can be reviewed with your inquiry.
| Dimensions (mm) | Pitch | Material | Standard / drawing reference | Drawing dimensions (mm) |
|---|---|---|---|---|
| Ø1 × 10 mm | Confirm on drawing | Stainless steel (304) | DIN EN ISO 1234 / DIN 94 | Confirm on selected drawing |
| Ø1 × 12 mm | Confirm on drawing | Stainless steel (304) | DIN EN ISO 1234 / DIN 94 | Confirm on selected drawing |
| Ø1 × 16 mm | Confirm on drawing | Stainless steel (304) | DIN EN ISO 1234 / DIN 94 | Confirm on selected drawing |
| Ø1 × 20 mm | Confirm on drawing | Stainless steel (304) | DIN EN ISO 1234 / DIN 94 | Confirm on selected drawing |
| Ø1 × 25 mm | Confirm on drawing | Stainless steel (304) | DIN EN ISO 1234 / DIN 94 | Confirm on selected drawing |
| Ø1.2 × 10 mm | Confirm on drawing | Stainless steel (304) | DIN EN ISO 1234 / DIN 94 | Confirm on selected drawing |
| Ø1.2 × 12 mm | Confirm on drawing | Stainless steel (304) | DIN EN ISO 1234 / DIN 94 | Confirm on selected drawing |
| Ø1.2 × 16 mm | Confirm on drawing | Stainless steel (304) | DIN EN ISO 1234 / DIN 94 | Confirm on selected drawing |
| Ø1.2 × 20 mm | Confirm on drawing | Stainless steel (304) | DIN EN ISO 1234 / DIN 94 | Confirm on selected drawing |
| Ø1.2 × 25 mm | Confirm on drawing | Stainless steel (304) | DIN EN ISO 1234 / DIN 94 | Confirm on selected drawing |
| Ø1.2 × 32 mm | Confirm on drawing | Stainless steel (304) | DIN EN ISO 1234 / DIN 94 | Confirm on selected drawing |
| Ø1.6 × 12 mm | Confirm on drawing | Stainless steel (304) | DIN EN ISO 1234 / DIN 94 | Confirm on selected drawing |
| Ø1.6 × 16 mm | Confirm on drawing | Stainless steel (304) | DIN EN ISO 1234 / DIN 94 | Confirm on selected drawing |
| Ø1.6 × 20 mm | Confirm on drawing | Stainless steel (304) | DIN EN ISO 1234 / DIN 94 | Confirm on selected drawing |
| Ø1.6 × 25 mm | Confirm on drawing | Stainless steel (304) | DIN EN ISO 1234 / DIN 94 | Confirm on selected drawing |
| Ø1.6 × 32 mm | Confirm on drawing | Stainless steel (304) | DIN EN ISO 1234 / DIN 94 | Confirm on selected drawing |
| Ø2 × 10 mm | Confirm on drawing | Stainless steel (304) | DIN EN ISO 1234 / DIN 94 | Confirm on selected drawing |
| Ø2 × 16 mm | Confirm on drawing | Stainless steel (304) | DIN EN ISO 1234 / DIN 94 | Confirm on selected drawing |
| Ø2 × 20 mm | Confirm on drawing | Stainless steel (304) | DIN EN ISO 1234 / DIN 94 | Confirm on selected drawing |
| Ø2 × 25 mm | Confirm on drawing | Stainless steel (304) | DIN EN ISO 1234 / DIN 94 | Confirm on selected drawing |
Material and drawing selection
Ø denotes nominal pin diameter, not a machine thread. DIN EN ISO 1234 (formerly DIN 94) applies to these 304 references; confirm the drawing-defined pin length and head section.
Drawing & sample review
Share a drawing, photograph or existing part reference. Any deviations from the listed product form can be reviewed before quotation.
Quality & packing
Inspection, documentation and packing requirements are agreed for each order.
Order arrangementsRelated product types
Discuss your requirements
A drawing, sample reference or parts list is enough to start the conversation. Dimensions and commercial terms are confirmed with your quotation.
