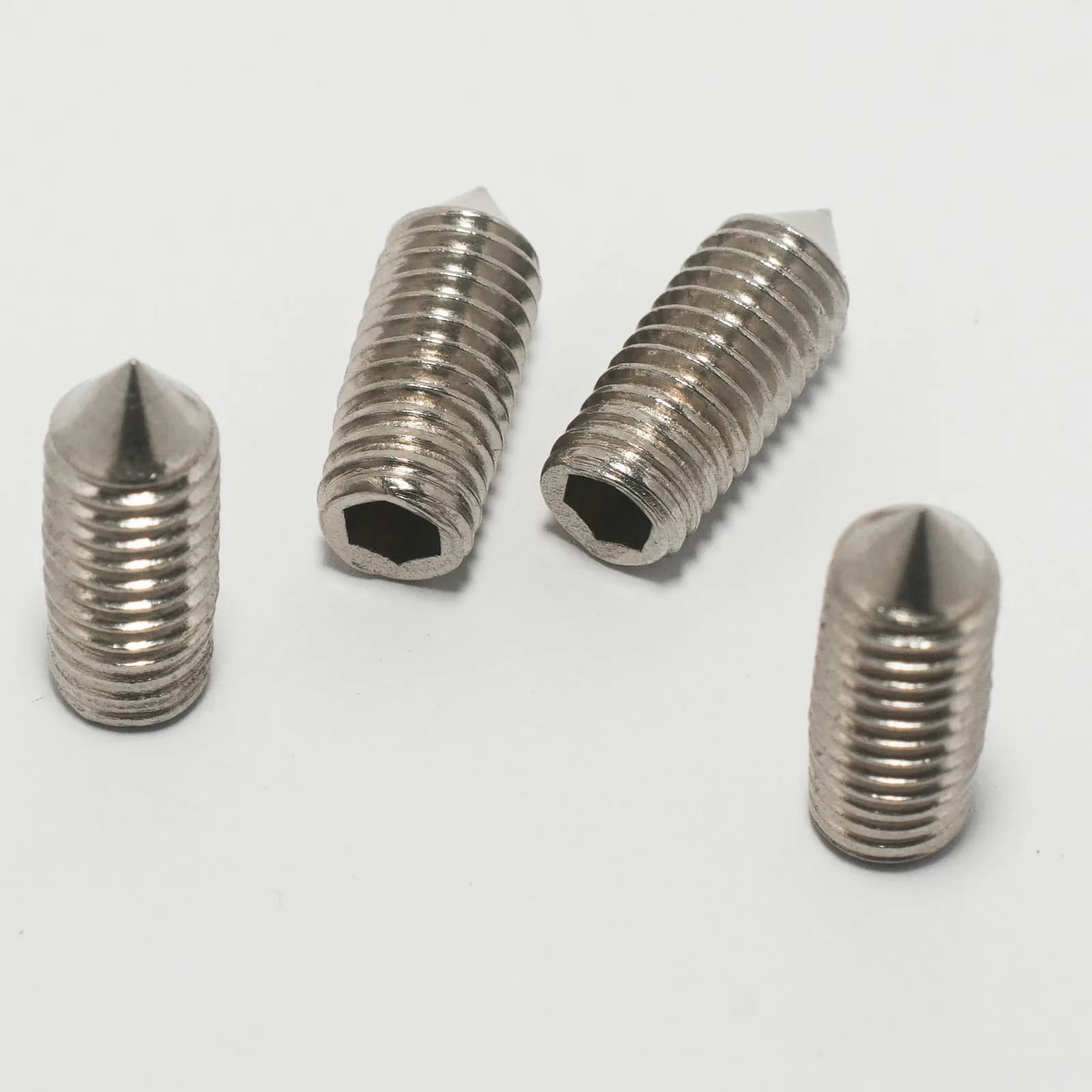

EnlargeRepresentative product photography. The supplied configuration is agreed with your order.
304 Stainless Steel Cone Point Set Screws
Source 304 stainless steel cone point set screws through Yulong in Shenzhen, China. The cone point defines the contact geometry of this set screw. Specify its angle and tip dimensions together with the thread and overall length.
- Listed material
- 304 Stainless steel
304 Stainless Steel Cone Point Set Screws quotation details
- Thread diameter and pitch
- overall length
- cone angle and point geometry
- socket size
- material
- quantity
Configuration, minimum quantity and lead time are reviewed with your inquiry.
304 Stainless Steel Cone Point Set Screws: sizes, material & specifications
Use these discrete specifications to identify your part. Length choices apply only to the thread size on the same row. Other sizes, drawing tolerances and order availability can be reviewed with your inquiry.
| Dimensions (mm) | Pitch | Material | Standard / drawing reference | Drawing dimensions (mm) |
|---|---|---|---|---|
| M3 × 10 mm | 0.5 mm | SUS304 | Drawing-specific | Confirm on selected drawing |
| M6 × 20 mm | 1 mm | SUS304 | Drawing-specific | Confirm on selected drawing |
| M10 × 30 mm | 1.5 mm | SUS304 | Drawing-specific | Confirm on selected drawing |
Material and drawing selection
These are cone-point socket set screws. No product standard was established for these references; specify the tip geometry and required drawing.
Drawing & sample review
Share a drawing, photograph or existing part reference. Any deviations from the listed product form can be reviewed before quotation.
Quality & packing
Inspection, documentation and packing requirements are agreed for each order.
Order arrangementsRelated product types
Discuss your requirements
A drawing, sample reference or parts list is enough to start the conversation. Dimensions and commercial terms are confirmed with your quotation.
